European TCU in US car v3

[csgohssecrets (mattaka)]

Hello,
I am having some troubles configuring a TCU from the Europe region on an imported vehicle.

Current situation:
I have a Ford Explorer 2022 Platinum imported from the US to Lithuania. The TCU module that came with it was NB5T-14G229-AA, we replaced it with an European one - LK3T-14G087-BD.

After looking at the ASBUILT database and checking what values needed to be changed, we did put the new module in factory mode and then back to
“waiting for auth”, but the problem is that while the Wi-Fi hotspot does indeed work and the module gets a signal, the connectivity settings cannot be accessed and the car doesn’t show the FordPass activation notification, even after restarting the apim and waiting.

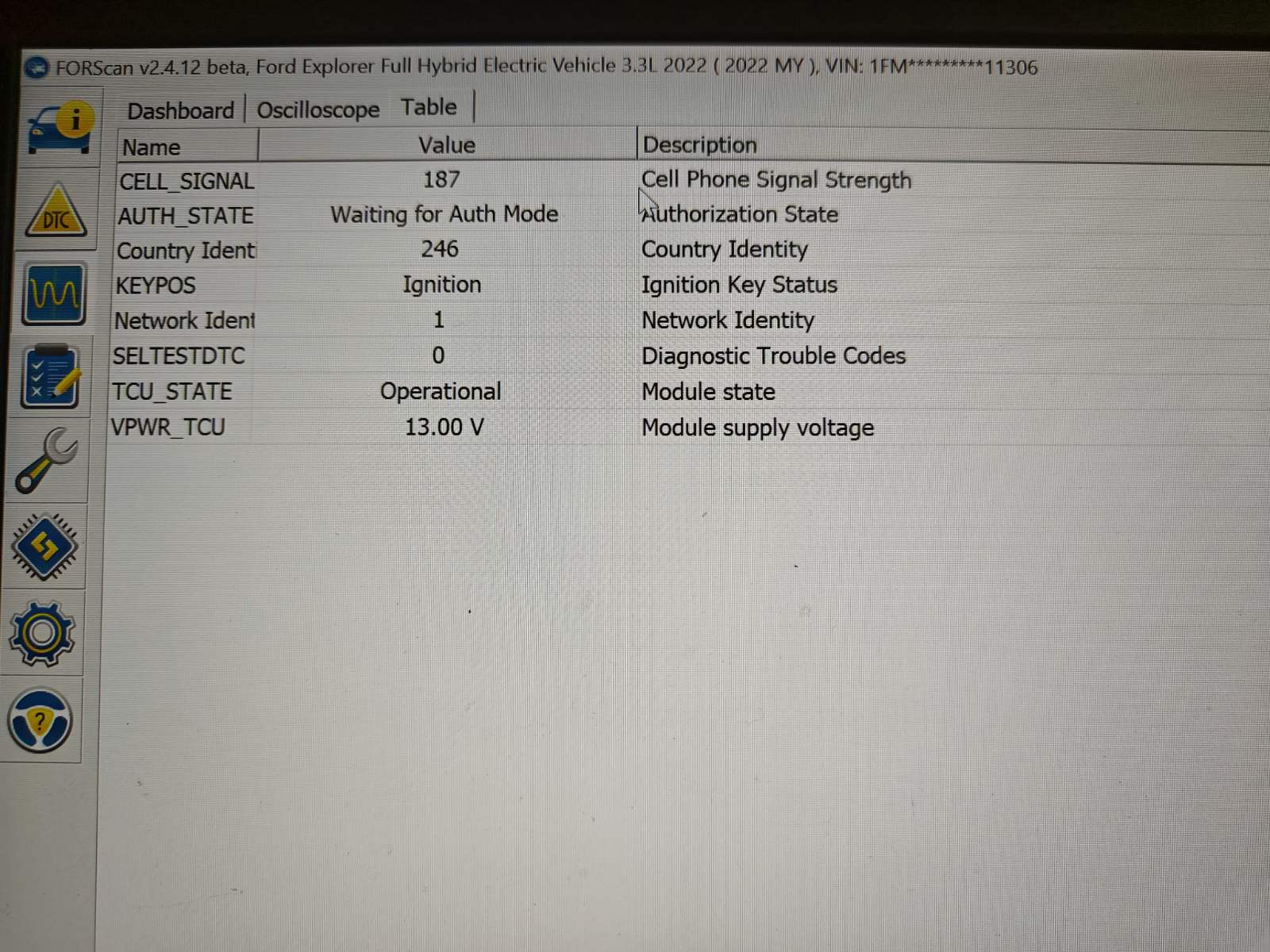

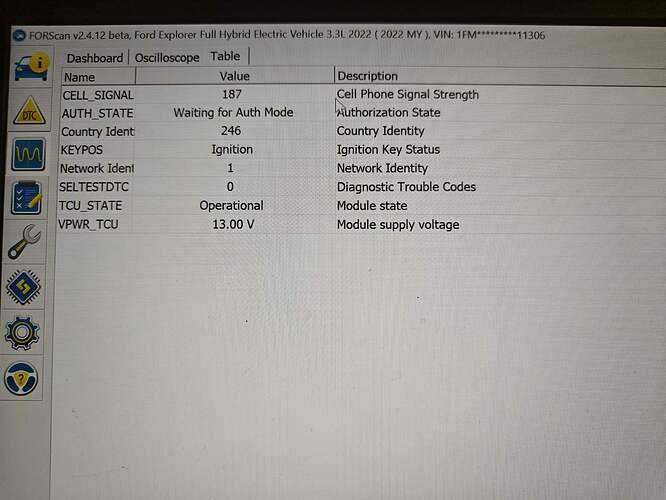

Here’s what is shown in TCU monitoring:

Here’s the ASBUILT data in TCU:

;Block 1
754G1G1B33800000048
754G1G2005E
;Block 2
754G2G11B2099
;Block 3
754G3G17D7D7D7D7DD0
754G3G27D7D7C7C7CCE
754G3G37C7C7C7C7CCD
754G3G47C7C7C7C7CCE
754G3G57C7D7D7C7CD1
754G3G61E007D7D7DF9
754G3G77D7D7D7D7DD6
754G3G87D7C7D7C7CD4
754G3G97C7C7C7C7CD3
754G3GA7C7C1E84
;Block 4
754G4G17C7C7C7C7CCC
754G4G27C7C7C7C7CCD
754G4G37C7C7C7C7CCE
754G4G47C7C7C7C7CCF
754G4G57C7C7C7C7CD0
754G4G67C7C7C7C7CD1
754G4G77C7C7C7C7CD2
754G4G87CE3
;Block 5
754G5G17E007E007EDB
754G5G27E7E7E7E7ED8
754G5G37E7E7E7E005B
754G5G47E7E7E7C7ED8
754G5G57E7E7E7E7EDB
754G5G67E7E7EE0
;Block 6
754G6G17D7D7D7C7CD1
754G6G27D7D7D7D7DD4
754G6G37D7D7D7D7DD5
754G6G47D7D7C7C7CD3
754G6G57C7C7C7C7CD2
754G6G67C7C7C7C7CD3
754G6G77C7C7C7D7CD5
754G6G87C7C7C7C035C
754G6G97C007D7D7D5D
754G6GA00000071
;Block 7
754G7G103C4A014F1CF
754G7G2681E0F0A181B
754G7G34B00640A0220
754G7G43C1E1F425879
754G7G50F044CFF10D5
754G7G6011079
;Block 8
754G8G105050605057E
754G8G2020105050577
754G8G3050505050A84
754G8G40A0A0A0A0695
754G8G5056D
;Block 9
754G9G16F70656E2E45
754G9G2696E74657288
754G9G36E65742E6642
754G9G4722E6F74745F
754G9G5000000000069
754G9G600000000006A
754G9G700000000006B
754G9G800000000006C
;Block 10
754GAG14C4800
;Block 11
754GBG100000000006D
754GBG200000000006E
754GBG300000000006F
754GBG4000000000070
754GBG5000000000071
754GBG6000000000072
754GBG7000000000073
754GBG8000000000074
;Block 12
754GCG100000000006E
754GCG200000000006F
754GCG3000000000070
754GCG4000000000071
754GCG5000000000072
754GCG6000000000073
754GCG7000000000074
754GCG8000000000075
;Block 13
754GDG17C7C7C7C3C9B
754GDG20ADE1E012CA3
;Block 14
754GEG1140084
;Block 15
754GFG1040A0000A827
754GFG240A258078033
754GFG340F0C80F057F
754GFG405037C
;Block 16
754H0G11F91
;Block 17
754H1G10174
;Block 18
754H2G1FE0476
;Block 19
754H3G10A0A0A0A0AA7
754H3G20A0A0A0A0AA8
754H3G30A0A287C002F
754H3G400050000007D
754H3G5000000000079
;Block 20
754H5G1000000780F04
754H5G20277F7
;Block 21
754H6G103E869
;Block 22
754H7G100000000007F
754H7G20080

Module Firmware was updated, current version:

Part number: LK3T-14G087-BD
Calibration level: LK3T-14G087-BL
Hardware Number: LK3T-14G145-BA
Secondary Boot Loader: LB5T-14G141-SA
Strategy (CAN, F188): LB5T-14G139-SR
ECU Configuration/Base Configuration (CAN, F10A): LB5T-14G144-SR

Country code matches in TCU and APIM ASBUILTs

[warlock12118]

1. Have you done a master reset of the APIM?
2. the TCU authorizing has nothing to do with the hot spot, the hot spot function is based on having a cell data plan with an available carrier. If this came from a donor, you have to use the VIN of the donor.
3. did you ever see the unit go into factory mode?

[csgohssecrets (mattaka)]

1.Yes, I did a master reset of the APIM before putting the TCU in factory mode.
2. I sadly do not have the VIN of the donor. What can I do in that case?
3. Yes.

[warlock12118]

Personally I’d use my phone for a hot spot instead of paying for a data plan for the TCU.

If the hot spot is enabled even without a data plan you should be able to connect to it over WiFi using the gateway IP to get into the built in web page. You’ll see the VIN there.

[csgohssecrets (mattaka)]

AFAIK Eu modems come with 5-years of free data plan. Everything is fine with the hotspot, I can browse the web with it, I just can’t get connectivity settings and fordpass to work. Going to the default gateway doesn’t bring up any page.

[warlock12118]

Have you tried doing a TCU reboot?

How close are you to the Russian border?
We had someone post with a similar issue a while back where the car couldn’t register and was in Russia, it cleared as soon as the car went into Belarus.
Ford has cur off server access from Russia due the the current sanctions.
