Hello all, I was wondering if someone could help with clearing some of these DTC’s? or pointing me in the right direction. I’ve searched the individual codes on here and found a few helpful threads but just want to make sure I’m in the right place.
For clarification, my vehicle is a 2014 Focus St. Sync 3 upgrade. as well as retrofitted Steering Wheel, Cluster, and center console (HVAC) from a 2017 Focus St.
Thank you for any and all help

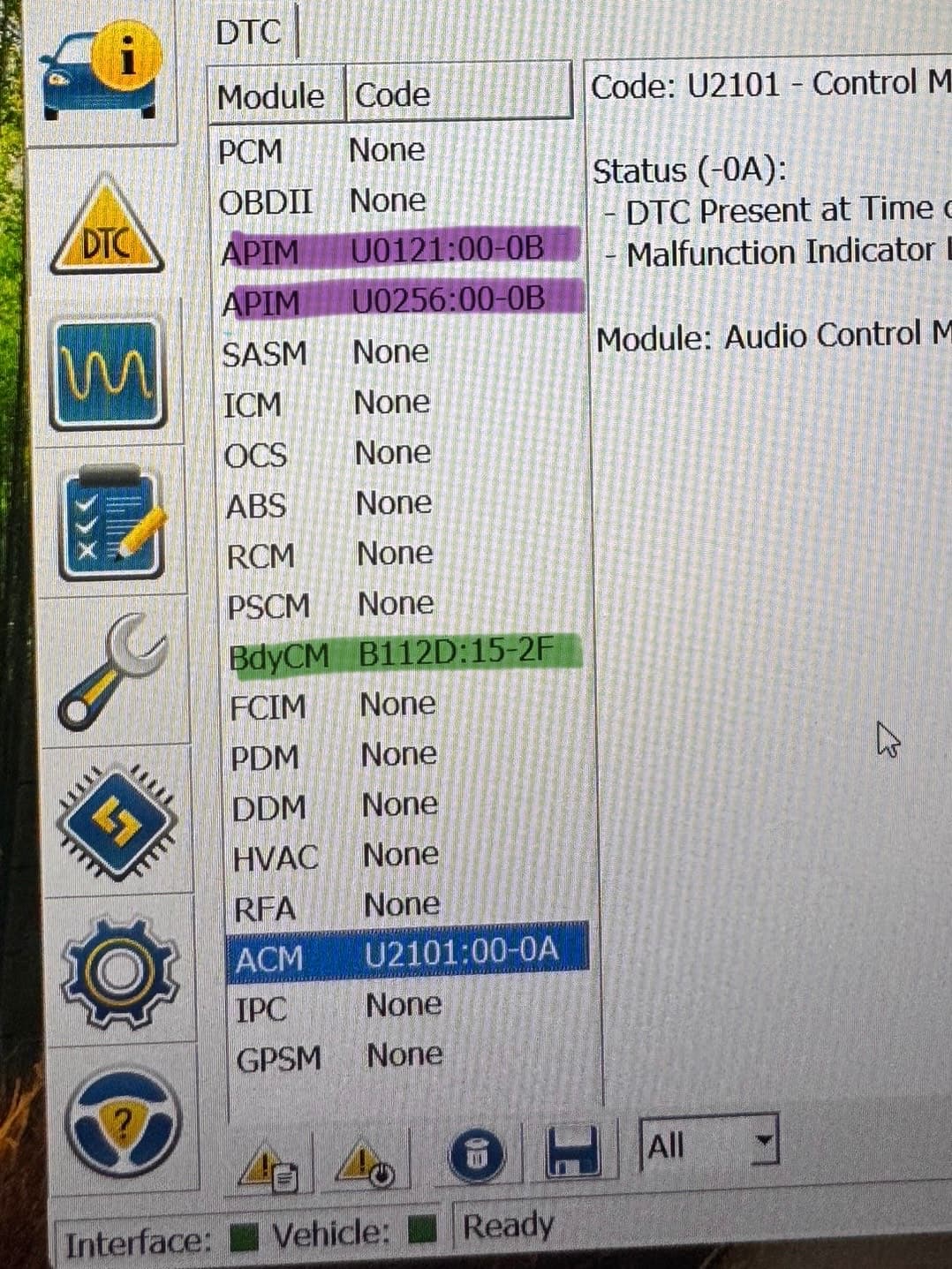

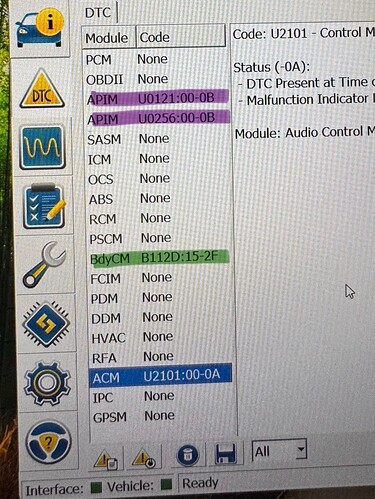

Did you mean to include a picture showing the DTCs? Nothing came through.
The Uxxxx codes are issues with module configurations, like the asbuilt is incorrect. Regarding code B112D, it refers to an Electronic Steering Column Lock (ESCL) Power Supply Short to Battery issue.
Okay. I’ll see if i can pull the codes.
I know APIM u0121 is lost communication to ABS, and i believe APIM u0256 is lost communication with FCIM.
The B112D says rear defrost LED short/open circuit
ACM U2101 is invalid config.
Youre saying the asbuilt is wrong? How would I go about correcting it? I assume pull the as built thats in there now, but how would i cross reference if the apim is upgraded to sync 3?
Do you see a GPS loss of signal icon on you APIM? This can cause lost communication to ABS.
Did you adjust the asbuilts for the new modules? The FCIM needs the VIN loaded in for your 2014 Focus.
I’ll have to check the gps signal on the apim. I’ve never noticed an icon for it but I know my clock won’t set to gps time. I just thought that might be a clock master thing and never bothered bc i use apple car play.
I have adjusted for new modules when I installed them. The sync3, steering wheel, and cluster i think i did in 2020. The console and hvac I did last year.
I’ll have to see how to load the vin into the fcim
Basically, I’ve always had persistant DTC’s but everything worked normally and there were no dash lights.
But for whatever reason my accessport can’t communicate with the car now so i can’t uninstall for inspection and my first step is to try and get these codes cleared.
That needs to be fixed. It affects mapping in CP/AA.
APIM as built should show 7D0-01-01 xx28 xxxx xxxx
2014 Focus is C1CMA.
As far as the FCIM…
|7A7-02-01 **** **** **xx VIN (1-5)
7A7-02-02 **** **** **xx VIN (6-10)
7A7-02-03 **** **** **xx VIN (11-15)
7A7-02-04 **** xx VIN (16-17)
You need to convert your VIN to HEX code. Windows calculator can do that. One letter at a time, Follow the format above.
or
Look in your BCM.
| 726-09-01 | **** | **** | **xx | VIN # | VIN #: (character 1-5 of VIN in ASCII converted to Hex) |
|---|---|---|---|---|---|
| 726-09-02 | **xx | VIN # | VIN #: (character 6 of VIN in ASCII converted to Hex) | ||
| 726-10-01 | **** | **** | **xx | VIN # | VIN #: (character 7-11 of VIN in ASCII converted to Hex) |
| 726-10-02 | **xx | VIN # | VIN #: (character 12 of VIN in ASCII converted to Hex) | ||
| 726-11-01 | **** | **** | **xx | VIN # | VIN #: (character 13-17 of VIN in ASCII converted to Hex) |
I don’t think I can edit my FCIM. The only place I found it was in the service procedures tab.
I changed the Clock master setting and it seemed to fix the clock working, but I still have the same DTC’s
dtc2.txt (3.4 KB)
===PCM DTC None===
Successful DTC reading, no error codes found
Module: Powertrain Control Module
===END PCM DTC None===
===OBDII DTC None===
Successful DTC reading, no error codes found
Module: On Board Diagnostic II
===END OBDII DTC None===
===APIM DTC U0121:00-0B===
Code: U0121 - Lost Communication With Anti-Lock Brake System (ABS) Control Module ‘A’
Status (-0B):
Module: Accessory Protocol Interface Module
===END APIM DTC U0121:00-0B===
===APIM DTC U0256:00-0B===
Code: U0256 - Lost Communication With Front Controls Interface Module ‘A’
Status (-0B):
Module: Accessory Protocol Interface Module
===END APIM DTC U0256:00-0B===
===SASM DTC None===
Successful DTC reading, no error codes found
Module: Steering Angle Sensor Module
===END SASM DTC None===
===ICM DTC None===
Successful DTC reading, no error codes found
Module: Information Center Module
===END ICM DTC None===
===OCS DTC None===
Successful DTC reading, no error codes found
Module: Occupant Classification System Module
===END OCS DTC None===
===ABS DTC None===
Successful DTC reading, no error codes found
Module: Antilock braking system
===END ABS DTC None===
===RCM DTC None===
Successful DTC reading, no error codes found
Module: Restraint Control Module
===END RCM DTC None===
===PSCM DTC None===
Successful DTC reading, no error codes found
Module: Power Steering Control Module
===END PSCM DTC None===
===BdyCM DTC B112D:15-2F===
Code: B112D - Rear window defrost LED
Additional Fault Symptom (:15):
Status (-2F):
Module: Body Control Module
Freeze Frame #1:
-EVENT_TIME: 335968354 s (Sat Apr 26 17:04:23 2025) - Event time
-TOTAL_DISTANCE: 151903 km - Total Distance
-MODULE_VOLTAGE: 12.3 V - Control Module Voltage
-INCAR_TEMPERATURE: 24 °C - In car temperature
-PWR_MODE_QF: Power Mode OK - Power Mode Quality Factor
-PWR_MODE_KEY: Ignition On - Power Mode Key State
===END BdyCM DTC B112D:15-2F===
===FCIM DTC None===
Successful DTC reading, no error codes found
Module: Front Controls Interface Module
===END FCIM DTC None===
===PDM DTC None===
Successful DTC reading, no error codes found
Module: Passengers Door Control Unit
===END PDM DTC None===
===DDM DTC None===
Successful DTC reading, no error codes found
Module: Drivers Door Module
===END DDM DTC None===
===HVAC DTC None===
Successful DTC reading, no error codes found
Module: Heating Ventilation Air Conditioning
===END HVAC DTC None===
===RFA DTC None===
Successful DTC reading, no error codes found
Module: Remote Function Actuator
===END RFA DTC None===
===ACM DTC U2101:00-0A===
Code: U2101 - Control Module Configuration Incompatible
Status (-0A):
Module: Audio Control Module
===END ACM DTC U2101:00-0A===
===IPC DTC None===
Successful DTC reading, no error codes found
Module: Instrument Panel Control Module
===END IPC DTC None===
===GPSM DTC None===
Successful DTC reading, no error codes found
Module: Global Positioning System Module
===END GPSM DTC None===
Interesting that the APIM has an issue with communications with the FCIM but there are no DTC’s for the FCIM.
When you clear the DTC’s then this comes back?
Try resetting the APIM with FORScan…
The ACM DTC is an asbuilt setting that is wrong.
I’m gunna try tomorrow or Tuesday. I spent like 9 hours on the asbuilt pages fully braking down my data and cross referencing what I have now with another sync3 st2 and my original data.
Yes, These 4 dtc’s are constant.
I’ve tried this a bunch of times. It always comes back. What I did learn while breaking my as built down, I have a lot of settings that has DAB enabled. Which from my understanding and other research on here, isn’t supposed to be enabled on NA units.
Okay. here’s the DTC’s left after loading the revised as-builts to APIM, ACM, IPC, and BdyCM…
New Dtc .txt (3.2 KB)
No DAB on NA vehicles.
===APIM DTC U0238:00-0B===
Code: U0238 - Lost Communication With Digital Audio Control Module DStatus (-0B):
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Accessory Protocol Interface Module
DACM-D is the ANC function. 2014 Focus ST, turn off ANC in the ACM.
===BdyCM DTC U0264:87-2F===
Code: U0264 - Lost Communication With Camera Module - RearAdditional Fault Symptom (:87):
- Missing Message
Status (-2F):
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Body Control Module
This is new…run the Camera LIN procedure for the camera/BCM. This is in the FORScan Tools menu.
===ACM DTC U0155:00-0A===
Code: U0155 - Lost Communication With Instrument Panel Cluster (IPC) Control Module ‘A’Status (-0A):
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Audio Control Module
This is new…don’t know why this would be.
Can you post your APIM and ACM asbuilts…
For sure, I will post tomorrow.
It went away after I cleared codes after taking the capture, but I’ve seen it a few times in the past. It likes to play peek-a-boo I guess.
This one I’d imagine is because I have an aftermarket back up camera. So I don’t have a module.
If it’s not persistent don’t worry about it but keep an eye on it. OCS modules tend to do this a bit also.
Yep.
Here’s the as-builts, as well as the dtc’s i get when i initially connect forscan, and after i clear.
New ACM.abt (497 Bytes)
New Apim.abt (349 Bytes)
Dtc initial .txt (4.6 KB)
Cleared Dtc .txt (3.0 KB)
