Reading navigation data (destinations) from a navigation system in a 2020 Ford Ranger

[KaeferLive]

Hi,

I’ve been tasked with reading data from a navigation system in a 2020 Ford Ranger and need to be able to get it up and running in the lab. From what I’ve found, I’ll need a CAN bus simulator that generates the necessary wake-up signals. Can anyone recommend a set of cables for a workbench setup (commercial, not DIY)?

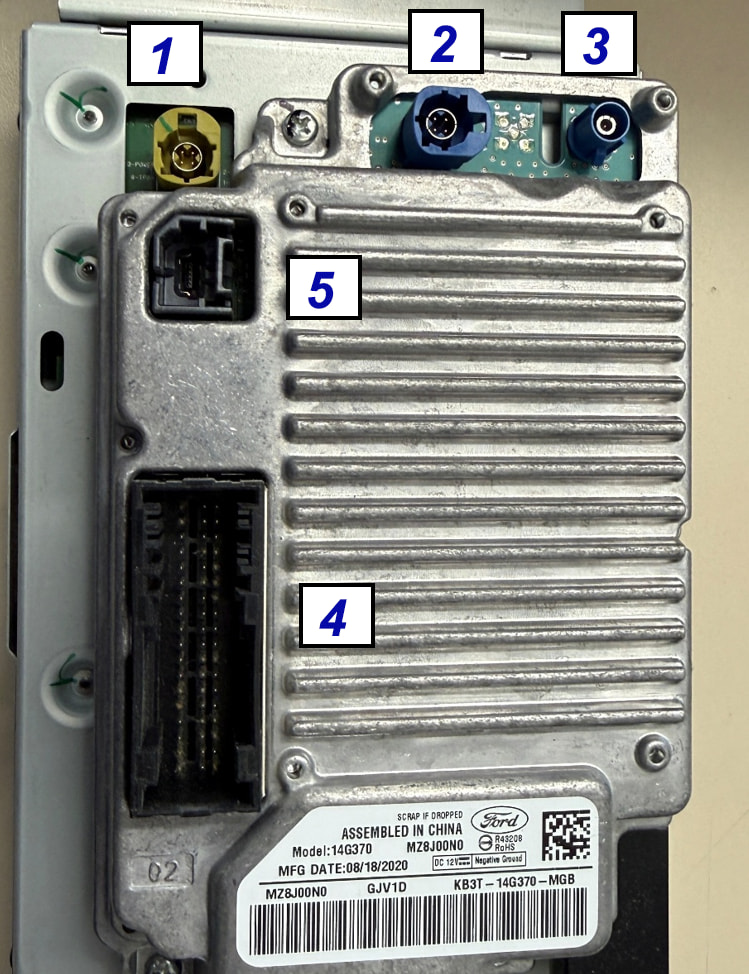

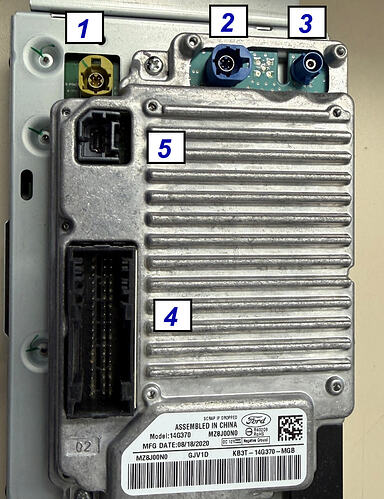

I think it has to fit in connector 4. It has to provide a suitable power supply then , I think.

Type of Car is:

Ford Ranger Typ „2AB" „YN2X4P" „51DBAQV4"

Accessory Protocol Interface Module (APIM) Modell14G370

Can anyone confirm that Connector 5 is a USB Port. I would need a cable for this then, too.

Then at the end, when I can get the unit running on a workbench, I will have to get access to the Memory. As far as I know, it should be a QNX/Linux/Android OS, and it may contain the last 40 navigation destination including the date and timestamps. And this would be very important: We need some evidence that the destination address which was entered in the system has been reached at a specific date/time.

I would really appreciate any further tips. Best regards from Germany.

Thomas

[bill32399]

It would be easier to just get a Ford that had Sync 3 and plug this APIM into it. Than you would easily have access to the APIM.

You are correct that #5 goes to the USB hub and #4 is the APIM power/data connector.

Not sure if the APIM shows you made it to a destination but it should have the passed searched addresses in it. If the vehicle had a TCU in it than I would contact that cell provider and see if they have location data history on it. That would show the locations it went to just like getting regular Cell phone history.

[KaeferLive]

Thx. Yes I know, but it is not my car and I do not have access to the orginal car.

[F150Chief]

@SFRANCO might have a solution for you…

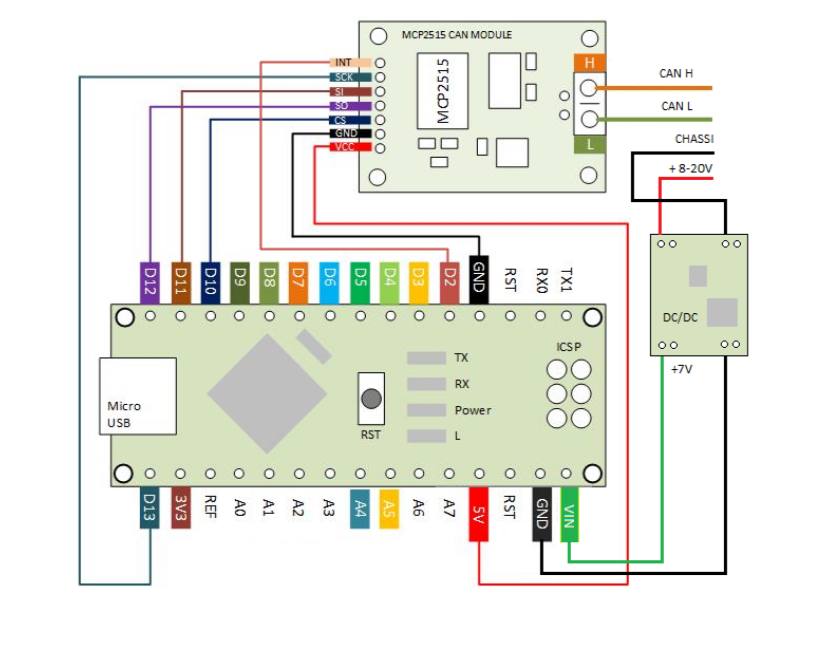

[SFRANCO (Hades)]

[SFRANCO (Hades)]

…1
