It is from an Explorer, right? His is for a Mustang.
Yes it is for an Explorer but it is exactly the same wiring.
1 Like

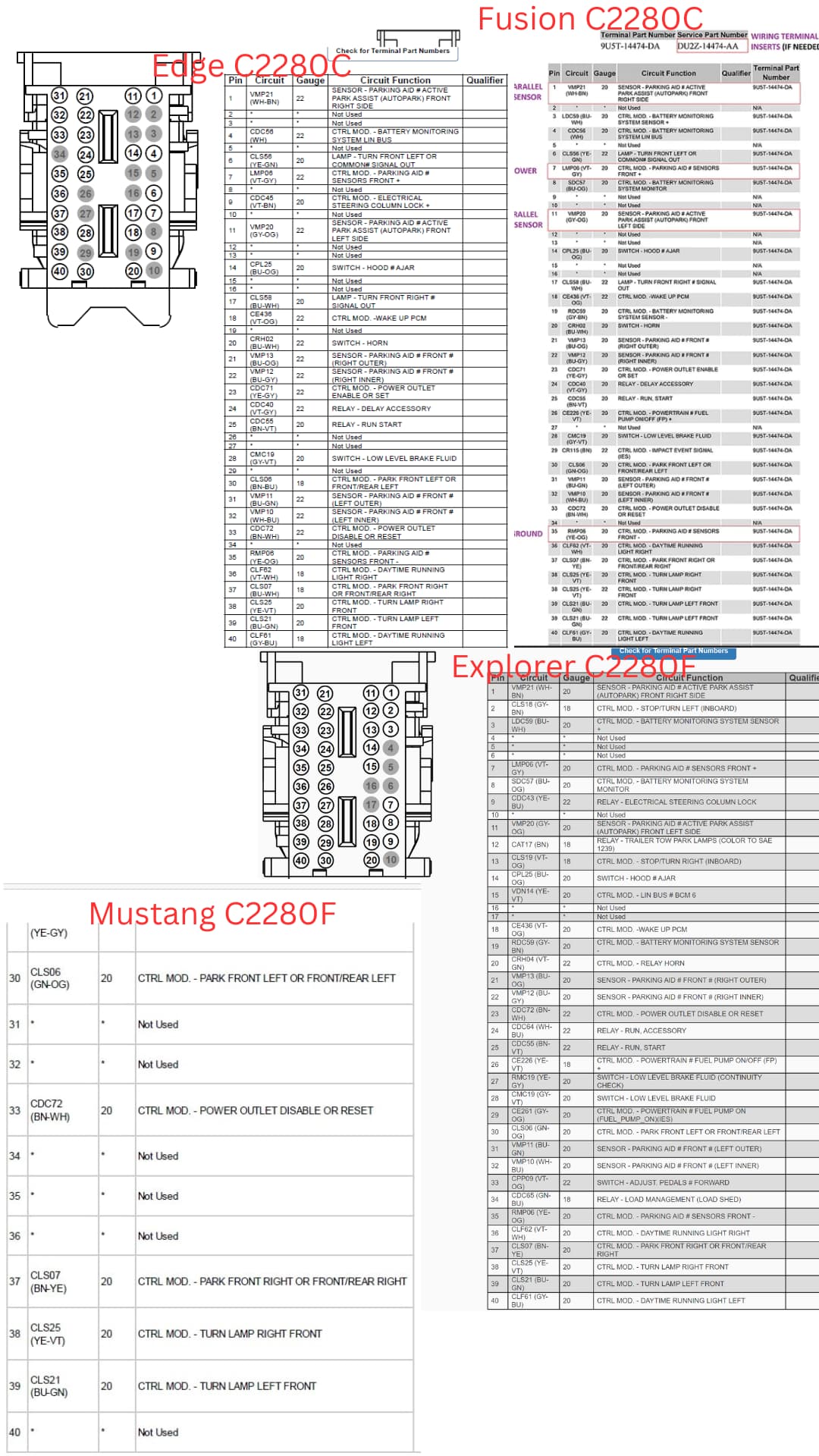

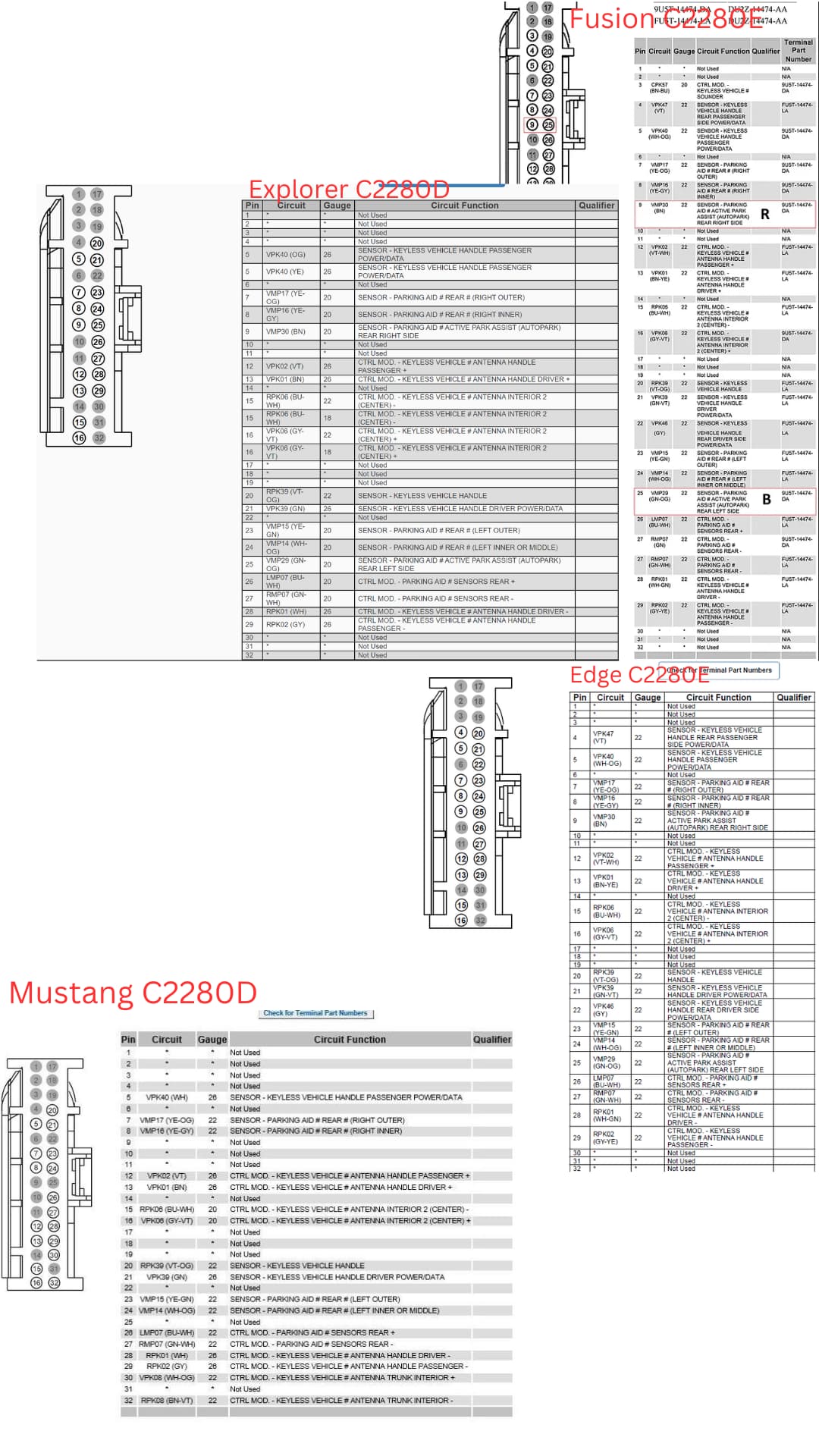

Let’s compare the BCM park aid of multiple CGEA 1.3 vehicles (Fusion, Edge, Explorer, Mustang). What we find is that the park aid is the same.
You will need to insert wires into your BCM’s C2280F connector.
Pin 7: CTRL MOD. - PARKING AID #SENSORS FRONT +
Pin 21: SENSOR - PARKING AID # FRONT #(RIGHT OUTER)
Pin 22: SENSOR - PARKING AID # FRONT #(RIGHT INNER)
Pin 31: SENSOR - PARKING AID # FRONT #(LEFT OUTER)
Pin 32: SENSOR - PARKING AID # FRONT #(LEFT INNER)
Pin 35: CTRL MOD. - PARKING AID #SENSORS FRONT -
1 Like
This goes for tons of Ford modules not just the BCM. They did the same with CGEA 1.2 vehicles.
2 Likes
Awesome! Thanks a lot for the help!
Now I only need to know what values to change with Forscan.
So, for a while I had all 12 parking sensors enabled on my vehicle, but only 4 rear parking sensors installed. So I had PAM DTCs for all of the missing sensors.
You will need to go to PAM Module configuration. Then find Park Assist Channels and change it from 4 - 4 channels to 8 - 8 channels.
Now, reboot the PAM module. Then, do PAM on demand self test. Finally, check for PAM DTCs.
