Radio logos and Calm Screen

Does anyone know if there is any radio logos for ANZ? I’ve activated calm screen and turned on radio logos, calm screens working but no logo’s.

Cheers :beers:

I have a 2020 Ford Edge that has the radio logos, but the calm screen option is not present. Is this just something that maybe I would have to enable in Forscan? Or is there something else going on?

You can enable it with FORScan. I think they added an easy config option and it should be under APIM configuration.

3 Likes

Thanks! I will give that a shot.

1 Like

My 2020 Fusion has both.

1 Like

Hi everybody
I have 3.4.21265 sync 3 upgraded from sync 2, I do not have Calm Screen or radio logo’s I have a 2015 mondeo and i am in australia. any help will be greatly appreciated.I have enabled calm screen in Forscan but to no avail.

Cheers
P S I am a Newbie Here

Welcome Newbie Here,
Depending on the Sync 3 APIM used for the upgrade, it might need a firmware update for calm screen to work. You can run the APIM Interrogator Utility to determine the status of your APIM. Download the Syn3 Updater and look in the Troubleshooting tab. Documentation for the app: Docs - CyanLabs Official Community

You can attach the log here.

hallo F150chief,
I have a Ford Mondeo Mk5, with 1st generation Sync3 (HB5T) with update 3.4.21265

  • and the same problem with the calm screen as bazza250
    These are my update (Log - Data) dates from Cyanlabs:
CYANLABS - SYN3 UPDATER - V2.10.6.0
Branch: Stable
Operating System: Microsoft Windows 10 Home (2009)

PREVIOUS CONFIGURATION
Version: 3.0.20204
Region: EU
Navigation: True
Install Mode: Automatisches Erkennen (reformat)
Install Mode Overridden: False
My20 Protection Enabled: Automatisches Erkennen

DESTINATION DETAILS
Mode: Drive
Model: SanDisk Ultra USB Device
FileSystem: exFAT
Partition Type: MBR

REFORMAT.LST
ENH_DAB=1U5T-14G658-AG_1626915602000.TAR.GZ
GRACENOTES=4U5T-14G423-AC_1615425645000.TAR.GZ
APPS=5U5T-14G381-EU_1634769242000.TAR.GZ
VOICE=5U5T-14G391-AR_1633363332000.TAR.GZ
MAP=1U5T-14G421-BGH_1615430797000.TAR.GZ
MAP=1U5T-14G421-BBH_1615430406000.TAR.GZ
MAP=1U5T-14G421-BJH_1615431074000.TAR.GZ
MAP=1U5T-14G421-BHH_1615430859000.TAR.GZ
MAP=1U5T-14G421-BFH_1615432204000.TAR.GZ
MAP=1U5T-14G421-BEH_1615430614000.TAR.GZ
MAP=1U5T-14G421-BDH_1615430533000.TAR.GZ
MAP=1U5T-14G421-BCH_1615430471000.TAR.GZ
MAP=1U5T-14G421-BAH_1615430310000.TAR.GZ
MAP_LICENSE=1U5T-14G424-BK_1616682400000.TAR.GZ
VOICE_NAV=4U5T-14G422-BDF_1615431510000.TAR.GZ
VOICE_NAV=4U5T-14G422-BCF_1615431448000.TAR.GZ
VOICE_NAV=4U5T-14G422-BBF_1615431222000.TAR.GZ
VOICE_NAV=4U5T-14G422-BAF_1615431156000.TAR.GZ


AUTOINSTALL.LST
; CyanLabs Syn3Updater 2.10.6.0 Stable - reformat  Mode - Sync 3.4.21265 EU

[SYNCGen3.0_ALL_PRODUCT]
Item1 = REFORMAT TOOL  - 1u5t-14g386-cb.tar.gz
Open1 = SyncMyRide\1u5t-14g386-cb.tar.gz
Options = AutoInstall

FILES (19)
1u5t-14g386-cb.tar.gz (8,5MB)
1U5T-14G658-AG_1626915602000.TAR.GZ (56,8MB)
4U5T-14G423-AC_1615425645000.TAR.GZ (689MB)
5U5T-14G381-EU_1634769242000.TAR.GZ (847,2MB)
5U5T-14G391-AR_1633363332000.TAR.GZ (1,5GB)
1U5T-14G421-BGH_1615430797000.TAR.GZ (2GB)
1U5T-14G421-BBH_1615430406000.TAR.GZ (473,7MB)
1U5T-14G421-BJH_1615431074000.TAR.GZ (23,9MB)
1U5T-14G421-BHH_1615430859000.TAR.GZ (2,6GB)
1U5T-14G421-BFH_1615432204000.TAR.GZ (2,4GB)
1U5T-14G421-BEH_1615430614000.TAR.GZ (1,6GB)
1U5T-14G421-BDH_1615430533000.TAR.GZ (1,1GB)
1U5T-14G421-BCH_1615430471000.TAR.GZ (1,7GB)
1U5T-14G421-BAH_1615430310000.TAR.GZ (2,2GB)
1U5T-14G424-BK_1616682400000.TAR.GZ (1,7KB)
4U5T-14G422-BDF_1615431510000.TAR.GZ (2GB)
4U5T-14G422-BCF_1615431448000.TAR.GZ (1,6GB)
4U5T-14G422-BBF_1615431222000.TAR.GZ (2,2GB)
4U5T-14G422-BAF_1615431156000.TAR.GZ (2,3GB)

LOG
[20.01.2022 19:02:24] Selected Region: EU - Release: Sync 3.4.21265 - Map Version: F10 (2020) - EU (03 2021)
[20.01.2022 19:02:24] Install Mode: Automatisches Erkennen (reformat) Forced: False
[20.01.2022 19:02:24] MY20 Protection: Automatisches Erkennen
[20.01.2022 19:02:24] Formatting USB drive
[20.01.2022 19:02:24] Re-creating partition table as MBR and formatting as ExFat on selected USB drive
[20.01.2022 19:02:32] Checking Existing File: 1u5t-14g386-cb.tar.gz
[20.01.2022 19:02:32] Downloading: 1u5t-14g386-cb.tar.gz
[20.01.2022 19:02:35] Validating: 1u5t-14g386-cb.tar.gz
[20.01.2022 19:02:35] Downloaded: 1u5t-14g386-cb.tar.gz
[20.01.2022 19:02:35] Checking Existing File: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 19:02:35] Downloading: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 19:02:44] Validating: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 19:02:44] Downloaded: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 19:02:44] Checking Existing File: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 19:02:44] Downloading: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 19:04:27] Validating: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 19:04:29] Downloaded: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 19:04:29] Checking Existing File: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 19:04:29] Downloading: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 19:06:36] Validating: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 19:06:38] Downloaded: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 19:06:38] Checking Existing File: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 19:06:38] Downloading: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 19:10:42] Validating: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 19:10:45] Downloaded: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 19:10:45] Checking Existing File: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 19:10:45] Downloading: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 19:17:52] Validating: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 19:17:57] Downloaded: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 19:17:57] Checking Existing File: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 19:17:57] Downloading: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 19:19:20] Validating: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 19:19:21] Downloaded: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 19:19:21] Checking Existing File: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 19:19:21] Downloading: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 19:19:26] Validating: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 19:19:26] Downloaded: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 19:19:26] Checking Existing File: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 19:19:26] Downloading: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 19:26:36] Validating: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 19:26:42] Downloaded: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 19:26:42] Checking Existing File: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 19:26:42] Downloading: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 19:33:37] Validating: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 19:33:43] Downloaded: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 19:33:43] Checking Existing File: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 19:33:43] Downloading: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 19:38:30] Validating: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 19:38:34] Downloaded: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 19:38:34] Checking Existing File: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 19:38:34] Downloading: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 19:42:15] Validating: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 19:42:18] Downloaded: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 19:42:18] Checking Existing File: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 19:42:18] Downloading: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 19:47:20] Validating: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 19:47:24] Downloaded: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 19:47:24] Checking Existing File: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 19:47:24] Downloading: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 19:53:27] Validating: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 19:53:32] Downloaded: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 19:53:32] Checking Existing File: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 19:53:32] Downloading: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 19:53:32] Validating: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 19:53:32] Downloaded: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 19:53:32] Checking Existing File: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 19:53:32] Downloading: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 19:59:02] Validating: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 19:59:06] Downloaded: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 19:59:06] Checking Existing File: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 19:59:06] Downloading: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:03:37] Validating: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:03:41] Downloaded: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:03:41] Checking Existing File: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:03:41] Downloading: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:09:28] Validating: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:09:33] Downloaded: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:09:33] Checking Existing File: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:09:33] Downloading: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:15:24] Validating: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:15:29] Downloaded: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:15:29] Preparing USB drive
[20.01.2022 20:15:29] Checking Existing File: 1u5t-14g386-cb.tar.gz
[20.01.2022 20:15:29] Copying: 1u5t-14g386-cb.tar.gz
[20.01.2022 20:15:30] Validating: 1u5t-14g386-cb.tar.gz
[20.01.2022 20:15:30] Copied: 1u5t-14g386-cb.tar.gz
[20.01.2022 20:15:30] Checking Existing File: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 20:15:30] Copying: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 20:15:34] Validating: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 20:15:34] Copied: 1U5T-14G658-AG_1626915602000.TAR.GZ
[20.01.2022 20:15:34] Checking Existing File: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 20:15:34] Copying: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 20:16:05] Validating: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 20:16:11] Copied: 4U5T-14G423-AC_1615425645000.TAR.GZ
[20.01.2022 20:16:11] Checking Existing File: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 20:16:11] Copying: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 20:16:48] Validating: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 20:16:55] Copied: 5U5T-14G381-EU_1634769242000.TAR.GZ
[20.01.2022 20:16:55] Checking Existing File: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 20:16:55] Copying: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 20:18:06] Validating: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 20:18:20] Copied: 5U5T-14G391-AR_1633363332000.TAR.GZ
[20.01.2022 20:18:20] Checking Existing File: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 20:18:20] Copying: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 20:19:49] Validating: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 20:20:06] Copied: 1U5T-14G421-BGH_1615430797000.TAR.GZ
[20.01.2022 20:20:06] Checking Existing File: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 20:20:06] Copying: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 20:20:27] Validating: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 20:20:31] Copied: 1U5T-14G421-BBH_1615430406000.TAR.GZ
[20.01.2022 20:20:31] Checking Existing File: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 20:20:31] Copying: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 20:20:32] Validating: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 20:20:32] Copied: 1U5T-14G421-BJH_1615431074000.TAR.GZ
[20.01.2022 20:20:32] Checking Existing File: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 20:20:32] Copying: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 20:22:26] Validating: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 20:22:48] Copied: 1U5T-14G421-BHH_1615430859000.TAR.GZ
[20.01.2022 20:22:48] Checking Existing File: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 20:22:48] Copying: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 20:24:42] Validating: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 20:25:02] Copied: 1U5T-14G421-BFH_1615432204000.TAR.GZ
[20.01.2022 20:25:02] Checking Existing File: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 20:25:02] Copying: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 20:26:17] Validating: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 20:26:31] Copied: 1U5T-14G421-BEH_1615430614000.TAR.GZ
[20.01.2022 20:26:31] Checking Existing File: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 20:26:31] Copying: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 20:27:23] Validating: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 20:27:33] Copied: 1U5T-14G421-BDH_1615430533000.TAR.GZ
[20.01.2022 20:27:33] Checking Existing File: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 20:27:33] Copying: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 20:28:49] Validating: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 20:29:03] Copied: 1U5T-14G421-BCH_1615430471000.TAR.GZ
[20.01.2022 20:29:03] Checking Existing File: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 20:29:03] Copying: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 20:30:39] Validating: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 20:30:58] Copied: 1U5T-14G421-BAH_1615430310000.TAR.GZ
[20.01.2022 20:30:58] Checking Existing File: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 20:30:58] Copying: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 20:30:58] Validating: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 20:30:58] Copied: 1U5T-14G424-BK_1616682400000.TAR.GZ
[20.01.2022 20:30:58] Checking Existing File: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 20:30:58] Copying: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 20:32:24] Validating: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 20:32:41] Copied: 4U5T-14G422-BDF_1615431510000.TAR.GZ
[20.01.2022 20:32:41] Checking Existing File: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:32:41] Copying: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:33:56] Validating: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:34:10] Copied: 4U5T-14G422-BCF_1615431448000.TAR.GZ
[20.01.2022 20:34:10] Checking Existing File: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:34:10] Copying: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:35:47] Validating: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:36:05] Copied: 4U5T-14G422-BBF_1615431222000.TAR.GZ
[20.01.2022 20:36:05] Checking Existing File: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:36:05] Copying: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:37:55] Validating: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:38:15] Copied: 4U5T-14G422-BAF_1615431156000.TAR.GZ
[20.01.2022 20:38:15] Generating reformat.lst
[20.01.2022 20:38:15] Generating autoinstall.lst
[20.01.2022 20:38:15] ALL FILES DOWNLOADED AND COPIED TO THE USB DRIVE SUCCESSFULLY!

IMG_20220207_174132

The calm screen doesn’t work for me either.
I also have it with the FORScan (2.4.5.beta3) and the
obdlink ex tries to enable this (enabled) but this also failed.
How can I change the settings so that the Calm Screen is also displayed for me?

Thank you very much for your efforts
Kind regards
bachi1968

Your unit is actually a Gen 2 APIM, HB5T.

You will need to upgrade the firmware to the HB5T versions as shown in the pic to enable the calm screen function.

1 Like

And how do I do that?
Do I need an extra charger for the battery?
Internet connection for the laptop?
are these the data i should download?
IMG_20220207_174132-1

and what does this line mean - I can’t download it, can I?
IMG_20220207_174132-2

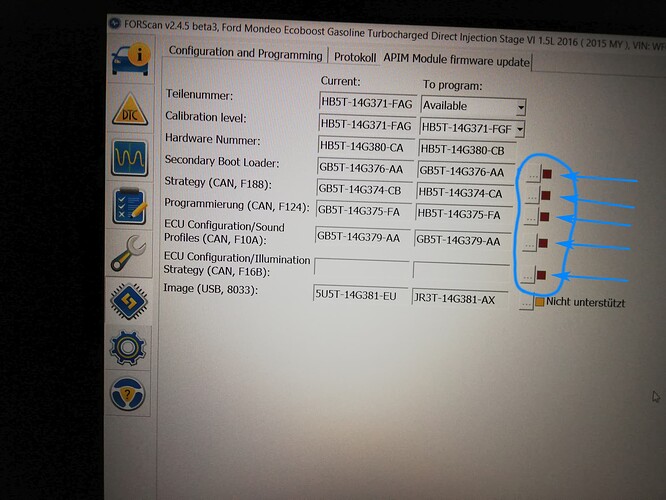

Do I have to enter or create something else here?
IMG_20220207_174132-3

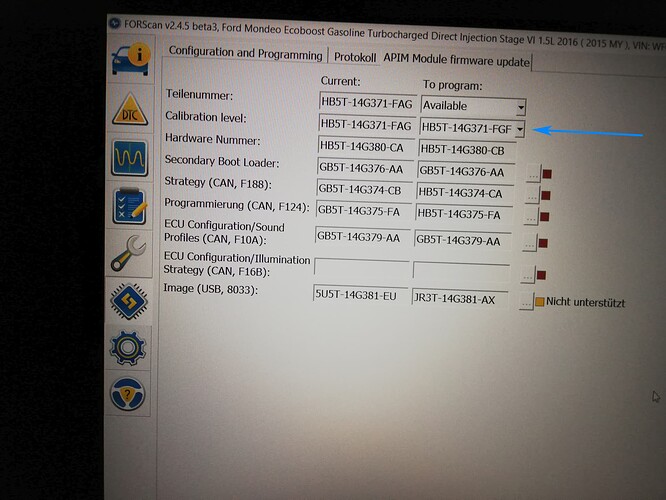

what do the red boxes mean? missing internet connection?
Approximately how long will the procedure take?

I know that a lot has been written about this in the forum, but I don’t quite get it yet.
So it would be great if you could help me with this.
Thank you for your understanding,
stay healthy
Kind regards
bachi1968

:sob:

1 Like

FORScan Tutorial Links - FORScan - Docs - CyanLabs Official Community

@bachi68 do not bump threads again, please :warning:

This topic was automatically closed 14 days after the last reply. New replies are no longer allowed.
