APIM recovery install failing with Error in 4U5T-14G421-CBD_1615428261000.TAR.GZ

Arrta · 5 September 2025 05:26

I accidentally bricked my APIM during an upgrade attempt when my starter failed. I stupidly turned it off and on at the wrong time, trying to start the car up.
After getting the vehicle back from the shop I followed the sync3flash process to recover the APIM and get it into a state where I could install. Initially, I attempted a standard MY20 install, but didnt realize I needed the reformat install. Once I realized the mistake I created a new USB using the manual process and was able to start the install. However, at about 17 mins in, the screen changes from one where it is performing the install to just a plane black lit screen.
I let it run some more but got no update, so I turned it off. The logs show Error in 4U5T-14G421-CBD_1615428261000.TAR.GZ
I redownloaded the file replacing it and trying again with the same error.
I located the version that was autodownloaded from syn3updater and tried that one, same deal.
The MD5 for all 3 files is the same 40BD485577A6B705F85B687F7575B07C, which is what it says on the site.

SYNC Region: NA

Navigation Variant: Nav

Manufacturer Year: MY20

Install Type: Retrofit

Old SYNC Version: 3.4.23188

New SYNC Version: 3.4.23188

Do you have a error message, if so what is it?
Please insert USB stick…
Searching for update packages…
Reformat install start
Thu Jan 01 00:00:04 UTC 1970
Found update packages on USB stick…
Repartitioning eMMC…
DBG: Size: Platform[15388672]-nand[15388672]
DBG: Partitioning hd0 1
ERROR: DBG: MY_Version = 1850
DBG: GetCylinderCount 32
DBG: GetCylinderCount 1536
DBG: GetCylinderCount 1536
DBG: GetCylinderCount 0
DBG: Part start block LBA 20 end block size is ffe0
DBG: 63/1/32/;31 : 65504 blocks
DBG: Part start block LBA 10000 end block size is 300000
DBG: 63/0/32/;1567 : 3145728 blocks
DBG: Part start block LBA 310000 end block size is 300000
DBG: 63/0/32/;3103 : 3145728 blocks
DBG: Part start block LBA 610000 end block size is 174a000
DBG: 63/0/32/;15027 : 24420352 blocks
DBG: GetCylinderCount 0
DBG: GetCylinderCount 1229
DBG: GetCylinderCount 1
DBG: EBR partition [0] size 21872640
DBG: curr_blk [ 0] write_offset1 6356992
DBG: EBR partition [1] size 2543616
DBG: curr_blk [ 512] write_offset1 28229632
DBG: EBR partition [2] size 4096
DBG: curr_blk [ 1024] write_offset1 30773248
Reformatting hd0t180 partition…
Reformatting hd0t181 partition…
Extracting Apps package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/NU5T-14G381-AD_1689364279000.TAR.GZ
File size : 912091858 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : apps.tar.gz
Extracting file Name : QNX-IFS
Wait extractTid thread to join
Extracting file Name : MLO
Waiting for child threads to join
HashValues are Same - [File Name] MLO
Version Inf Hash Value : 42a281394a92119cbb0f71bd296c0e6b3e21e52da1ef382711c46b15e1e2923d
Extracted file Hash Value : 42a281394a92119cbb0f71bd296c0e6b3e21e52da1ef382711c46b15e1e2923d
HashValues are Same - [File Name] QNX-IFS
Version Inf Hash Value : 0c84baebdd57a3f39429c3285c38a2e297fb20fec01852a328c0548f68e677c9
Extracted file Hash Value : 0c84baebdd57a3f39429c3285c38a2e297fb20fec01852a328c0548f68e677c9
HashValues are Same - [File Name] apps.tar.gz
Version Inf Hash Value : abb7a43bbb7eec8dd3a35410a5a28353d160302c4bffd80e2708746e1eb97397
Extracted file Hash Value : abb7a43bbb7eec8dd3a35410a5a28353d160302c4bffd80e2708746e1eb97397
Total Consumed Time = 73323.826497
Extraction and Hash Verification Completed
Updating apps package…
Virtual address 00150000 / Physical address b7fa0000
diff = 171690 ms
user diff = 114280 ms
system diff = 280 ms
Updated apps package…
Reformatting hd0t178 partition…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CJD_1615428865000.TAR.GZ
File size : 689851818 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_name_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_name_new.img
Version Inf Hash Value : a45f2fbc14975372be8a424c52c27727f69dd706596a547ff749a067ea1b7d77
Extracted file Hash Value : a45f2fbc14975372be8a424c52c27727f69dd706596a547ff749a067ea1b7d77
Total Consumed Time = 76994.137207
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CHD_1615428793000.TAR.GZ
File size : 1037664627 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_naca_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_naca_new.img
Version Inf Hash Value : 829f070c2d0a3c2d15588702a62f9acc543c510dba0e62ce3cc4069ec5e41b7e
Extracted file Hash Value : 829f070c2d0a3c2d15588702a62f9acc543c510dba0e62ce3cc4069ec5e41b7e
Total Consumed Time = 97846.854655
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CGD_1615428721000.TAR.GZ
File size : 1163376207 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_nase_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_nase_new.img
Version Inf Hash Value : 476c41fe33854b893ab0b6b09db0d3c65d0035217698f545a7a2d3e96d078032
Extracted file Hash Value : 476c41fe33854b893ab0b6b09db0d3c65d0035217698f545a7a2d3e96d078032
Total Consumed Time = 112723.324219
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CFD_1615428639000.TAR.GZ
File size : 1113931334 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_nane_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_nane_new.img
Version Inf Hash Value : 9138e19df7cf1f24e615a12c608d550cdcb86a68c7727136d56c734cdcbbf9cd
Extracted file Hash Value : 9138e19df7cf1f24e615a12c608d550cdcb86a68c7727136d56c734cdcbbf9cd
Total Consumed Time = 112855.231445
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CED_1615428554000.TAR.GZ
File size : 1122947694 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_nanm_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_nanm_new.img
Version Inf Hash Value : 69660742b0cc7720fb226e5dc48d0b852c34e6f8d04903ee52a9a3011425cda5
Extracted file Hash Value : 69660742b0cc7720fb226e5dc48d0b852c34e6f8d04903ee52a9a3011425cda5
Total Consumed Time = 108136.034180
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CDD_1615428467000.TAR.GZ
File size : 1338129466 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_nac_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_nac_new.img
Version Inf Hash Value : a0969939621eae70e6d887864119456e9ef1a50223d7a22776908e5b7e5e79ab
Extracted file Hash Value : a0969939621eae70e6d887864119456e9ef1a50223d7a22776908e5b7e5e79ab
Total Consumed Time = 135479.678711
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Extraction Type: 1
Input File : /fs/usb0/SyncMyRide/4U5T-14G421-CCD_1615428361000.TAR.GZ
File size : 1115467399 Bytes
Extracting file Name : Version.der
Failed Del: /fs/images/ivsu_cache/.extract_apps/Version.inf / 2Time [@ DER] in GMT: Sun Jan 29 13:47:39 2015
Version_Parse_INF File Location : /fs/images/ivsu_cache/.extract_apps/Version.inf
Extracting file Name : map_naw_new.img
Wait extractTid thread to join
Waiting for child threads to join
HashValues are Same - [File Name] map_naw_new.img
Version Inf Hash Value : 7047a21c28b06c9101a5c07e08f313954e25248d81f1bea67cb6cd45c78be71e
Extracted file Hash Value : 7047a21c28b06c9101a5c07e08f313954e25248d81f1bea67cb6cd45c78be71e
Total Consumed Time = 108649.927897
Extraction and Hash Verification Completed
Updated Maps package…
Extracting map package:
Error in 4U5T-14G421-CBD_1615428261000.TAR.GZ :
Reformat install end
Thu Jan 01 00:17:05 UTC 1970

Update Method: CyanLabs Manual Method

Arrta · 5 September 2025 13:03

So, I found another person who had a similar issue only their original question was in Spanish so I missed it. F150Chief recommended an install of the Sync 3.3.19052 app file only using the reformat method. This actually worked, the unit appears to have powered on and I hear the radio now. However the screen is still black, likely because this version does not support the 10.1 inch screen I have.

I was able to successfully run the interrogator though so happy days.
VIN: 1FM5K8AB0LGC63871
APIM Model: LU5T-14G371-BMF
APIM Type: Non-Navigation
APIM Size: 16GB
APIM Free Space: 10G
Version 3.3.19052 (4U5T-14G381-AN)

9/5/2025 7:27:38 AM +00:00

Partition Type = Free / Total
/fs/rwdata/ = 1.0G / 1.2G
/fs/mp/ = 505M / 1.4G
/fs/images/ = 10G / 10G

Installed Packages

I know this is a NAV version, though it says non-nav. I think this is because I did not select to include any maps.
I used the tool to force the app into reformat mode and had it download and install only the app.
Going to try an update to the latest app to fix the screen and report back. Obviously if anyone has any information I should use let me know.

Arrta · 5 September 2025 14:21

OK, so now its updated to 3.4.23188 and the screen is working.
I installed Voice Gracenotes and Apps on the install but left out the maps.

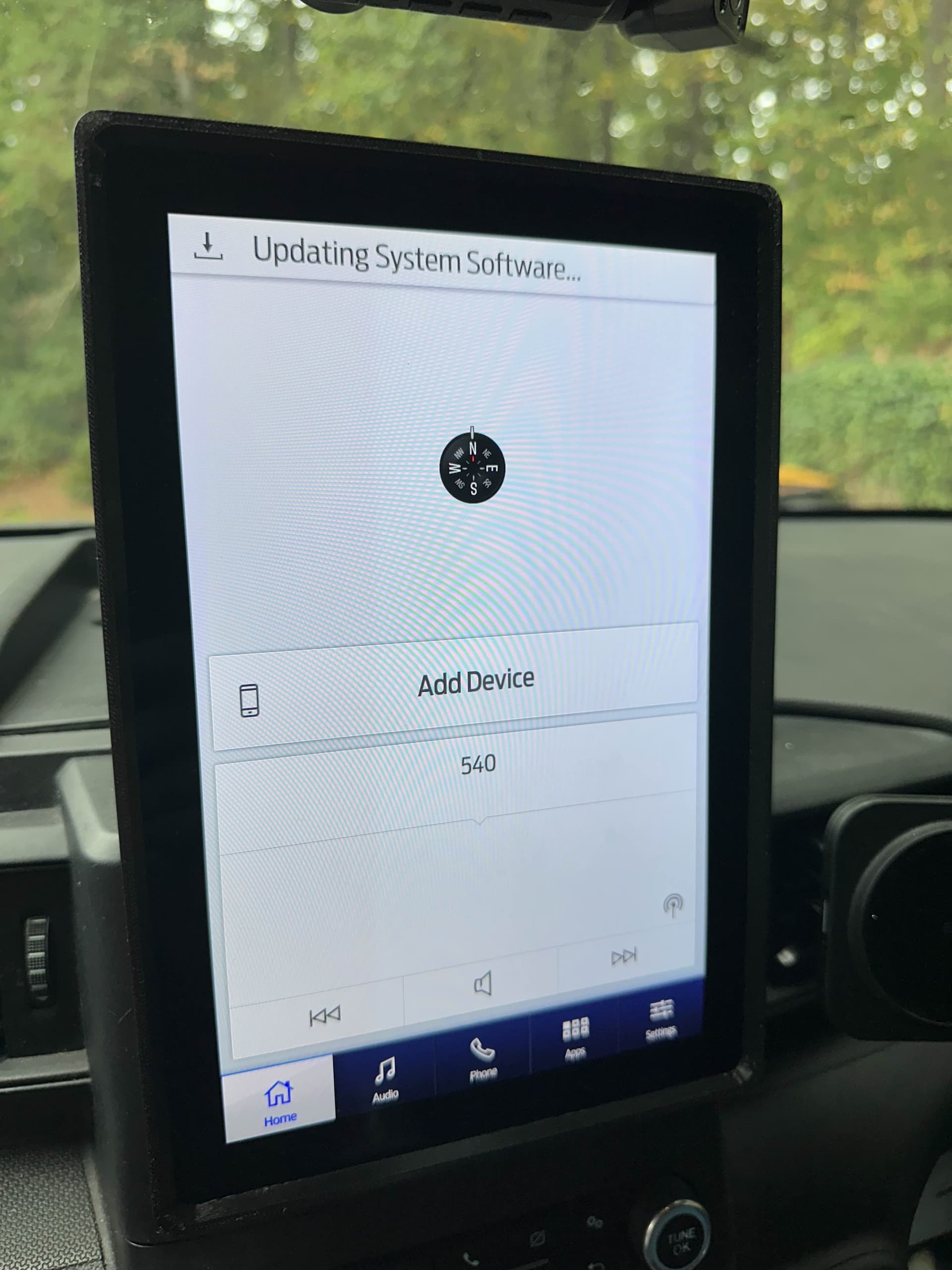

I started the car and installed the USB after 1 min and let it go. Not having a display I had no idea where it was in the process so I left it alone for about 30 mins. Went back and I had this.

Left it alone and it never got off this screen. I did confirm that 3.4.23188 got installed and it says gracenotes is in too. Unsure if Voice got added.

Attempted to run the interrogator, only now I get a package error when trying. I’m going to attempt a full NAV install and hope for the best.

Arrta · 5 September 2025 16:03

Install appears to have completed. But I got an error at the end. But the error did not get logged to the drive. Or maybe it was an error because I left the car alone for about an hour…

Interrogator works again though and here is the output.

VIN: 1FM5K8AB0LGC63871
APIM Model: LU5T-14G371-BMF
APIM Type: Non-Navigation
APIM Size: 16GB
APIM Free Space: 1.5G
Version 3.4.23188 (NU5T-14G381-AD)

9/5/2025 10:58:53 AM +00:00

Partition Type = Free / Total
/fs/sd/MAP/ = 12M / 1.4G
/fs/sd/MAP/ = 17M / 1.7G
/fs/sd/MAP/ = 7.2M / 1.4G
/fs/Nuance/ = 25M / 2.6G
/fs/Nuance/ = 3.2M / 465M
/fs/Nuance/grace = 5.8M / 775M
/fs/rwdata/ = 852M / 1.2G
/fs/rwdata/quip/ = 35M / 35M
/fs/rwdata/quip/ = 90M / 90M
/fs/mp/ = 84M / 1.4G
/fs/images/ = 1.5G / 10G

Installed Packages
4U5T-14G423-CC
5U5T-14G391-CS
4U5T-14G424-CD
4U5T-14G421-CAD
4U5T-14G421-CBD
4U5T-14G421-CGD
4U5T-14G422-CAJ

APIM AsBuilt
DE00: AA0A00020800480C048A
DE01: 55531204842A5498ACB64405
DE02: 0006080200
DE03: 000001800B0000
DE04: 1ABD1AA42E85
DE05: 30
DE06: 1B003300000000753000005656910076

Its still telling me non nav but has the Maps installed. I think this might be due to the asbuilt data and I’ll take care of that later.

Arrta · 5 September 2025 17:36

ok.. according to the APIM database this model is non NAV, but the guy I bought it from says it is NAV.. Could I have messed up the install somehow?

warlock12118 · 5 September 2025 20:38

The unit is a non-NAV, the fact that you have the compass showing indicates that the AB config is setup for a non-NAV APIM, otherwise you’d have a map fault error.

You need to repeat the reformat process, but this time set the files up for a non-NAV unit.

Arrta · 6 September 2025 01:00

Problem is this is a MY20 unit and reformat is nor realistically an option.
Can I use the sync3flash process to restart without having to brick it again? If so, I’ll happily do it.

SaNdMaN · 6 September 2025 01:15

Jailbreak the unit, FMODS has a universal reformat utility that can handle MY20 hardware… You should look into that.

Do not reformat a MY20 unit using Syn3updater

F150Chief · 6 September 2025 02:56

This is a NON-NAV APIM. Stop trying to install maps on it, it does not have the memory space to operate as NAV. Go buy a K series APIM with NAV if you need built in maps, otherwise use AA/CP.

LU5T-14G371-BMF
-BMF: B=NON-NAV

Arrta · 6 September 2025 03:10

I actually think that’s what I used with the sync3flash utility and the jumper trick.
