Climate control not working after upgrade

Ford SYNC 3 Support Ford Update Support
, , , , , ,
1

Hello, I have upgraded from SYNC 2 to 3 non-nav on my 2015 Explorer. I no longer have climate controls except for rear and front defrost. I believe I need to re-write the AS-BUILT data. Is anyone able to provide me with the correct file so that I can complete my upgrade?

SYNC Region: NA

Navigation Variant: Non Nav

Manufacturer Year: Pre MY20

Install Type: Retrofit

Old SYNC Version: 2.1

New SYNC Version: 3.2.1

Do you have a error message, if so what is it?
N/A

Update Method: Official Ford

2

There is no file, Just a AB value that needs to be changed. Before anyone can give you the right value we need to know if you have Auto Climate or Manual.

3

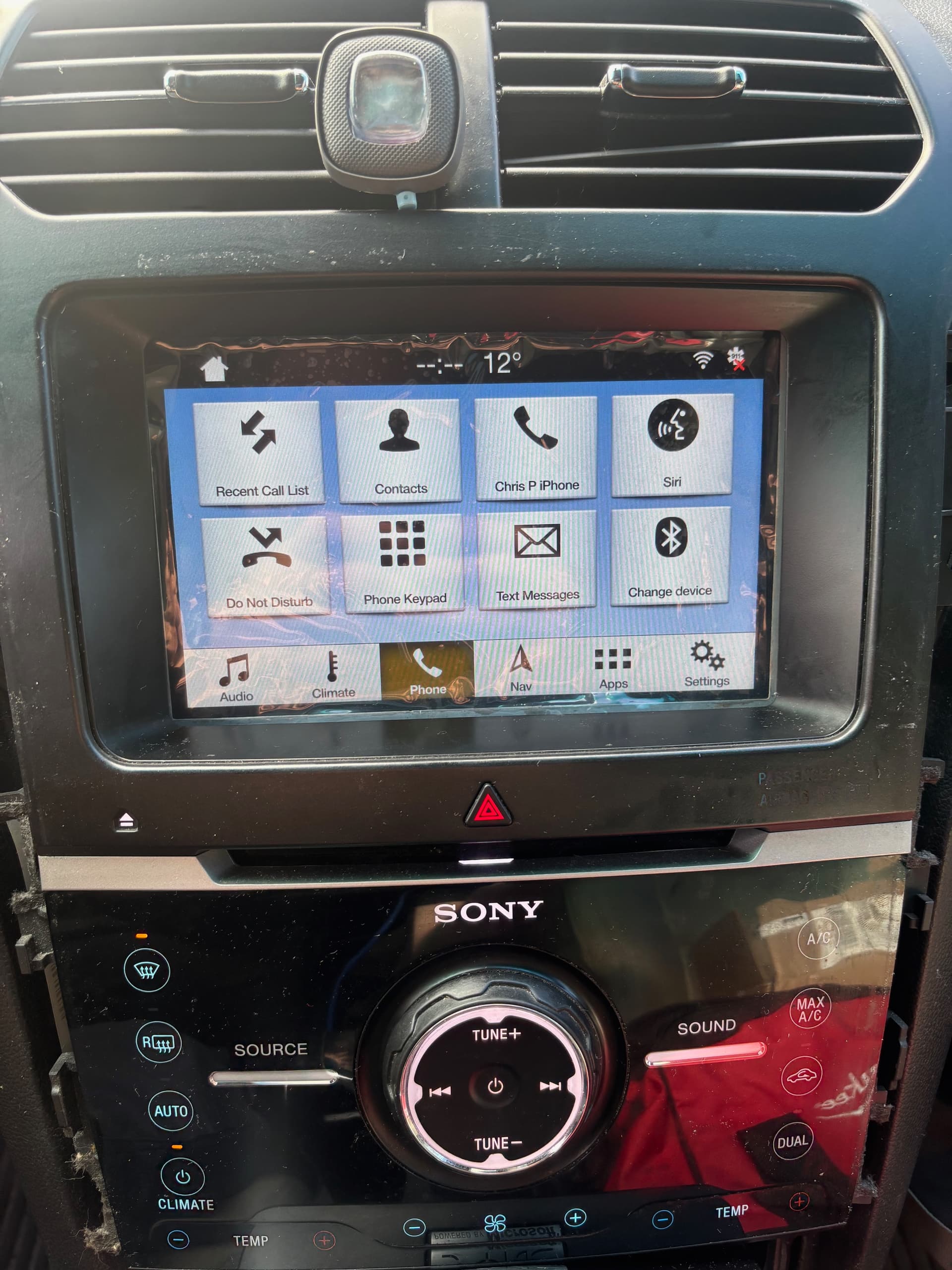

it is dual zone. please see attached image

1
11920Ă—2560 407 KB

1.jpg|689.2500000000001pxx919.0000000000001px

1 Like
4

Looks like AUTO climate.

You should post your APIM asbuilt here so @bill32399 can take a look at it…That looks to be an old Sync 3 version.

5

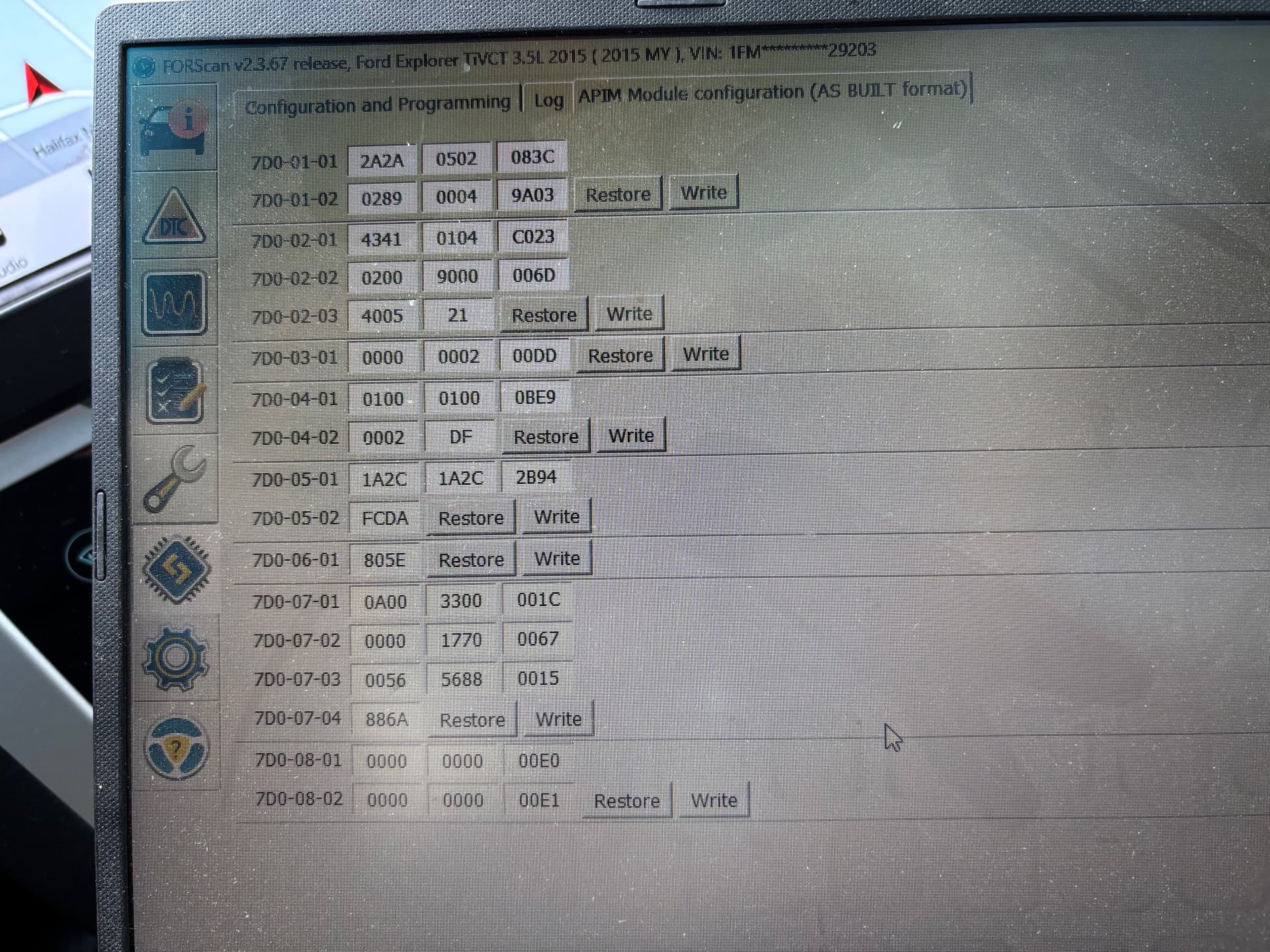

Here is the data (file attached as well).

Summary

PCM Modules

PCM 1 FFFF FFFF FF0C
PCM 2 FFFF FFFF FF0D
undefined ---- ---- ----
PCM 3 FFFF 03FF 5F72
undefined ---- ---- ----
PCM 4 FFFF 2FFF FF3F
undefined ---- ---- ----
PCM 5 2F2F FFFF FF70
undefined ---- ---- ----
PCM 6 FFFF FFFF FF11
undefined ---- ---- ----
PCM 7 FFFF FFFF FF12
undefined ---- ---- ----
PCM 8 FFFF FFFF FF13
undefined ---- ---- ----
PCM 9 FFFF FFFF FF14
undefined ---- ---- ----

BCE Modules

Module Address Instructions
Side Obstacle Detection Module Left
undefined ---- :—:
SODL 7C4-01-01 04D1
undefined ---- ---- ----
SODL 7C4-02-01 0000 CE
undefined ---- ---- ----
SODL 7C4-03-01 602F
undefined ---- ---- ----
SODL 7C4-04-01 00D0
undefined ---- ---- ----
SODL 7C4-05-01 01D2
undefined ---- ---- ----
SODL 7C4-06-01 5F0A 3B
undefined ---- ---- ----
SODL 7C4-07-01 0DE0
undefined ---- ---- ----
SODL 7C4-08-01 5900 801E
undefined ---- ---- ----
SODL 7C4-08-02 00D5
undefined ---- ---- ----
SODL 7C4-09-01 3A0F 0000
undefined ---- ---- ----
SODL 7C4-09-02 0A1E 0000
undefined ---- ---- ----
SODL 7C4-09-03 5802 0000
undefined ---- ---- ----
SODL 7C4-09-04 23FB
undefined ---- ---- ----
SODL 7C4-10-01 01D3 140D
undefined ---- ---- ----
SODL 7C4-10-02 201A 6040
undefined ---- ---- ----
SODL 7C4-10-03 00D2 07D0
undefined ---- ---- ----
SODL 7C4-10-04 5560 4840
undefined ---- ---- ----
SODL 7C4-10-05 0032 0118
undefined ---- ---- ----
SODL 7C4-10-06 00E1
undefined ---- ---- ----
Side Obstacle Detection Module Right
undefined ---- :—:
SODR 7C6-01-01 04D3
undefined ---- ---- ----
SODR 7C6-02-01 0000 D0
undefined ---- ---- ----
SODR 7C6-03-01 6031
undefined ---- ---- ----
SODR 7C6-04-01 00D2
undefined ---- ---- ----
SODR 7C6-05-01 01D4
undefined ---- ---- ----
SODR 7C6-06-01 5F0A 3D
undefined ---- ---- ----
SODR 7C6-07-01 0DE2
undefined ---- ---- ----
SODR 7C6-08-01 5900 801E
undefined ---- ---- ----
SODR 7C6-08-02 00D7
undefined ---- ---- ----
SODR 7C6-09-01 3A0F 0000
undefined ---- ---- ----
SODR 7C6-09-02 0A1E 0000
undefined ---- ---- ----
SODR 7C6-09-03 5802 0000
undefined ---- ---- ----
SODR 7C6-09-04 23FD
undefined ---- ---- ----
SODR 7C6-10-01 01D3 140D
undefined ---- ---- ----
SODR 7C6-10-02 201A 6040
undefined ---- ---- ----
SODR 7C6-10-03 00D2 07D0
undefined ---- ---- ----
SODR 7C6-10-04 5560 4840
undefined ---- ---- ----
SODR 7C6-10-05 0032 0118
undefined ---- ---- ----
SODR 7C6-10-06 00E3
undefined ---- ---- ----
Accessory Protocol Interface Module
undefined ---- :—:
APIM 7D0-01-01 A221 1102
undefined ---- ---- ----
APIM 7D0-01-02 0403 4000
undefined ---- ---- ----
APIM 7D0-02-01 4341 0104
undefined ---- ---- ----
APIM 7D0-02-02 8200 0000
undefined ---- ---- ----
APIM 7D0-02-03 0000 DC
undefined ---- ---- ----
APIM 7D0-03-01 014B 5803
undefined ---- ---- ----
APIM 7D0-04-01 0103 0200
undefined ---- ---- ----
APIM 7D0-04-02 0003 E0
undefined ---- ---- ----
Global Positioning Sensor Module
undefined ---- :—:
GPSM 701-01-01 404A
undefined ---- ---- ----
Image Processing Module
undefined ---- :—:
IPMA 706-01-01 1FA9 8A92
undefined ---- ---- ----
IPMA 706-02-01 FFFF CFFF
undefined ---- ---- ----
IPMA 706-02-02 FFC0 CC9C
undefined ---- ---- ----
IPMA 706-03-01 4490 4000
undefined ---- ---- ----
IPMA 706-04-01 8E40 0080
undefined ---- ---- ----
Heated Steering Wheel Module
undefined ---- :—:
GPSM 714-01-01 0A00 0000
undefined ---- ---- ----
GPSM 714-02-01 0244 4444
undefined ---- ---- ----
Instrument Panel Control Module
undefined ---- :—:
IPC 720-01-01 FDC2 EF3E
undefined ---- ---- ----
IPC 720-01-02 FC2C 08E2
undefined ---- ---- ----
IPC 720-01-03 FC27
undefined ---- ---- ----
IPC 720-02-01 0309 0700
undefined ---- ---- ----
IPC 720-03-01 5553 D3
undefined ---- ---- ----
IPC 720-04-01 B228 BC80
undefined ---- ---- ----
IPC 720-04-02 0000 0000
undefined ---- ---- ----
Steering Column Control Module
undefined ---- :—:
SCCM 724-01-01 C05E C7D3
undefined ---- ---- ----
SCCM 724-02-01 CC21 4C40
undefined ---- ---- ----
SCCM 724-03-01 0201 2806
undefined ---- ---- ----
SCCM 724-04-01 0032 01F4
undefined ---- ---- ----
SCCM 724-05-01 01F4 0320
undefined ---- ---- ----
SCCM 724-06-01 003C 003C
undefined ---- ---- ----
SCCM 724-07-01 003C FFFF
undefined ---- ---- ----
SCCM 724-08-01 FFFF FFFF
undefined ---- ---- ----
SCCM 724-09-01 FFFF FFFF
undefined ---- ---- ----
Body Control Module
undefined ---- :—:
BCM 726-01-01 0000 0130
undefined ---- ---- ----
BCM 726-02-01 0A3A
undefined ---- ---- ----
BCM 726-03-01 0101 0101
undefined ---- ---- ----
BCM 726-04-01 0300 0035
undefined ---- ---- ----
BCM 726-05-01 0000 0000
undefined ---- ---- ----
BCM 726-06-01 0000 0000
undefined ---- ---- ----
BCM 726-07-01 0300 38
undefined ---- ---- ----
BCM 726-08-01 0200 38
undefined ---- ---- ----
BCM 726-09-01 0101 39
undefined ---- ---- ----
BCM 726-10-01 0000 0014
undefined ---- ---- ----
BCM 726-11-01 0301 0000
undefined ---- ---- ----
BCM 726-12-01 0001 000F
undefined ---- ---- ----
BCM 726-13-01 0101 0000
undefined ---- ---- ----
BCM 726-14-01 0000 0101
undefined ---- ---- ----
BCM 726-15-01 0000 0101
undefined ---- ---- ----
BCM 726-16-01 0011 55
undefined ---- ---- ----
BCM 726-17-01 0100 46
undefined ---- ---- ----
BCM 726-18-01 0000 0005
undefined ---- ---- ----
BCM 726-19-01 0148
undefined ---- ---- ----
BCM 726-20-01 0201 010A
undefined ---- ---- ----
BCM 726-21-01 0030 7F
undefined ---- ---- ----
BCM 726-22-01 0104 2323
undefined ---- ---- ----
BCM 726-23-01 0101 53
undefined ---- ---- ----
BCM 726-24-01 0100 53
undefined ---- ---- ----
BCM 726-25-01 0640 99
undefined ---- ---- ----
BCM 726-26-01 0802 0140
undefined ---- ---- ----
BCM 726-27-01 0190 05F0
undefined ---- ---- ----
BCM 726-28-01 0000 56
undefined ---- ---- ----
BCM 726-29-01 0158
undefined ---- ---- ----
BCM 726-30-01 015F
undefined ---- ---- ----
BCM 726-31-01 0463
undefined ---- ---- ----
BCM 726-32-01 0712 79
undefined ---- ---- ----
BCM 726-33-01 05A0 06
undefined ---- ---- ----
BCM 726-34-01 0034 66FC
undefined ---- ---- ----
BCM 726-35-01 0407 6E
undefined ---- ---- ----
BCM 726-36-01 6100 0001
undefined ---- ---- ----
BCM 726-37-01 0001 0066
undefined ---- ---- ----
BCM 726-38-01 0066
undefined ---- ---- ----
BCM 726-39-01 0001 0068
undefined ---- ---- ----
BCM 726-40-01 006E
undefined ---- ---- ----
BCM 726-41-01 0101 71
undefined ---- ---- ----
BCM 726-42-01 3146 4D35
undefined ---- ---- ----
BCM 726-42-02 38A9
undefined ---- ---- ----
BCM 726-43-01 4638 3446
undefined ---- ---- ----
BCM 726-43-02 41B3
undefined ---- ---- ----
BCM 726-44-01 3239 3230
undefined ---- ---- ----
BCM 726-44-02 0073
undefined ---- ---- ----
BCM 726-45-01 016D 090E
undefined ---- ---- ----
BCM 726-45-02 0175
undefined ---- ---- ----
BCM 726-46-01 0888 2485
undefined ---- ---- ----
BCM 726-46-02 0075
undefined ---- ---- ----
BCM 726-47-01 0176
undefined ---- ---- ----
Audio Control Module
undefined ---- :—:
ACM 727-01-01 1AA0 F000
undefined ---- ---- ----
ACM 727-01-02 0031
undefined ---- ---- ----
ACM 727-02-01 0132
undefined ---- ---- ----
ACM 727-03-01 2A5C
undefined ---- ---- ----
ACM 727-04-01 0002 0143
undefined ---- ---- ----
Power Steering Control Module
undefined ---- :—:
PSCM 730-01-01 0405 0101
undefined ---- ---- ----
PSCM 730-01-02 0100 0000
undefined ---- ---- ----
PSCM 730-01-03 0100 3C
undefined ---- ---- ----
Remote Function Actuator
undefined ---- :—:
RFA 731-01-01 5F99
undefined ---- ---- ----
RFA 731-02-01 0A45
undefined ---- ---- ----
RFA 731-03-01 5540 5540
undefined ---- ---- ----
RFA 731-03-02 003D
undefined ---- ---- ----
Electronic Automatic Temperature Control Module
undefined ---- :—:
EATC 733-01-01 0029 005A
undefined ---- ---- ----
EATC 733-01-02 6460 0000
undefined ---- ---- ----
EATC 733-02-01 3146 4D35
undefined ---- ---- ----
EATC 733-02-02 3846 3834
undefined ---- ---- ----
EATC 733-02-03 4741 3239
undefined ---- ---- ----
EATC 733-02-04 3033 A3
undefined ---- ---- ----
Restraint Control Module
undefined ---- :—:
RCM 737-01-01 3146 4D35
undefined ---- ---- ----
RCM 737-01-02 3846 3834
undefined ---- ---- ----
RCM 737-01-03 4741 3239
undefined ---- ---- ----
RCM 737-01-04 3033 A6
undefined ---- ---- ----
RCM 737-02-01 E768 CE3B
undefined ---- ---- ----
RCM 737-02-02 0C67 00B5
undefined ---- ---- ----
RCM 737-03-01 0F51
undefined ---- ---- ----
RCM 737-04-01 C003
undefined ---- ---- ----
RCM 737-05-01 0135 7A
undefined ---- ---- ----
Driver Seat Module
undefined ---- :—:
DSM 744-01-01 FE40 8B
undefined ---- ---- ----
DSM 744-02-01 004E
undefined ---- ---- ----
DSM 744-03-01 2300 E153
undefined ---- ---- ----
DSM 744-04-01 0050
undefined ---- ---- ----
DSM 744-05-01 3842 16E1
undefined ---- ---- ----
DSM 744-06-01 382A 0EC2
undefined ---- ---- ----
DSM 744-07-01 382A 0EC3
undefined ---- ---- ----
DSM 744-08-01 382A 0EC4
undefined ---- ---- ----
Anti-Lock Bake System Module
undefined ---- :—:
ABS 760-01-01 3146 4D35
undefined ---- ---- ----
ABS 760-01-02 3846 3834
undefined ---- ---- ----
ABS 760-01-03 4741 3239
undefined ---- ---- ----
ABS 760-01-04 3033 CF
undefined ---- ---- ----
ABS 760-02-01 1122 711B
undefined ---- ---- ----
ABS 760-02-02 026D
undefined ---- ---- ----
Dual Climate Control Seat Module
undefined ---- :—:
DCSM 776-01-01 4B37 0A2F
undefined ---- ---- ----
DCSM 776-02-01 5550 0A3A
undefined ---- ---- ----
DCSM 776-03-01 6458 0A47
undefined ---- ---- ----
DCSM 776-04-01 503C 5030
undefined ---- ---- ----
DCSM 776-05-01 464B 5064
undefined ---- ---- ----
DCSM 776-06-01 645A 6400
undefined ---- ---- ----
DCSM 776-07-01 6E41 3C0A
undefined ---- ---- ----
DCSM 776-08-01 FEFE 2300
undefined ---- ---- ----
Audio Digital Signal Processor
undefined ---- :—:
DSP 783-01-01 60EC
undefined ---- ---- ----
DSP 783-02-01 028F
undefined ---- ---- ----

End of information

1FM5K8F84FGA29203.ab (17.8 KB)

6

You posted the Ford website AB values that are for Sync 2. I need just your current AB values you have on your Sync 3 module. I dont need the rest of this.

7

I will need to connect OBD to FORSCAN for that, correct?

8

You will, If you have been using the values that you sent me than those are specific to your old Sync 2 and will be wrong. Now with Sync 3 the AB values from the website wont work for the APIM.

9

Once I get my hands on a OBD scanner and FORSCAN program, what data do you want to write down and where I can find them. I greatly appreciate your help with this. Thank you.

10

Just do a screen shot of the values. I see the Climate tab, are you going into it and seeing stuff grey’d out?

11

i am yet to get the hardware for obd scanning. i will keep you posted

12

i have ordered the hardware and will send the requested code soon as it arrives. thank you for all the help.

1 Like
13

Hello again, I now have a OBD scanner and forscan lite app on my iphone. could you please tell me how to get the code that you requested? Thank you in advance.

Edit: Typo

14

Sorry I am not familiar with Forscan light. I only use the paid PC version.

15

FORScan Lite does not support these functions…
Comparison of FORScan applications

You will need FORScan free version on a Windows based laptop or tablet.

16

can you guide me on how to do it on windows? I have it on my laptop.

17

FORScan Tutorial (Livinitup - F150Forum/F150Gen14)

1 Like
18

before I get the forscan for windows, you think any of this data could work?

===OBD2_PCM DTC ===
Successful DTC reading, no error codes found

Module: On Board Diagnostic II (PCM)
===END OBD2_PCM DTC===

===PCM DTC ===
Successful DTC reading, no error codes found

Module: Powertrain Control Module
===END PCM DTC===

===APIM DTC C1001:01-48===
Code: C1001 - Vision System Camera

Additional Fault Symptom:
 - General Electrical Failure

Status:
 - Previously Set DTC - Not Present at Time of Request
 - Malfunction Indicator Lamp is Off for this DTC
 - Test not complete

Module: Accessory Protocol Interface Module
===END APIM DTC===

===APIM DTC U3003:16-08===
Code: U3003 - Battery Voltage

Additional Fault Symptom:
 - Circuit Voltage Below Threshold

Status:
 - Previously Set DTC - Not Present at Time of Request
 - Malfunction Indicator Lamp is Off for this DTC

Module: Accessory Protocol Interface Module
===END APIM DTC===

===FCIM DTC ===
Successful DTC reading, no error codes found

Module: Front Controls Interface Module
===END FCIM DTC===

===FLM DTC ===
Successful DTC reading, no error codes found

Module: Front Lighting Control Module
===END FLM DTC===

===ATCM DTC ===
Successful DTC reading, no error codes found

Module: All Terrain Control Module
===END ATCM DTC===

===DSP DTC ===
Successful DTC reading, no error codes found

Module: (Audio) Digital Signal Processing Module
===END DSP DTC===

===OCS DTC ===
Successful DTC reading, no error codes found

Module: Occupant Classification System Module
===END OCS DTC===

===ABS DTC ===
Successful DTC reading, no error codes found

Module: Antilock braking system
===END ABS DTC===

===RCM DTC ===
Successful DTC reading, no error codes found

Module: Restraint Control Module
===END RCM DTC===

===PAM DTC ===
Successful DTC reading, no error codes found

Module: Parking Aid Module
===END PAM DTC===

===PSCM DTC ===
Successful DTC reading, no error codes found

Module: Power Steering Control Module
===END PSCM DTC===

===ACM DTC ===
Successful DTC reading, no error codes found

Module: Audio Control Module
===END ACM DTC===

===BdyCM DTC ===
Successful DTC reading, no error codes found

Module: Body Control Module
===END BdyCM DTC===

===SCCM DTC ===
Successful DTC reading, no error codes found

Module: Steering Column Control Module
===END SCCM DTC===

===IPC DTC U0253:00-2F===
Code: U0253 - Lost Communication With Accessory Protocol Interface Module

Status:
 - DTC Present at Time of Request
 - Malfunction Indicator Lamp is Off for this DTC

Module: Instrument Panel Control Module
===END IPC DTC===

===IPMA DTC ===
Successful DTC reading, no error codes found

Module: Image Processing Module A
===END IPMA DTC===

===SODR DTC ===
Successful DTC reading, no error codes found

Module: Side Obstacle Detection Control Module - Right
===END SODR DTC===

===SODL DTC ===
Successful DTC reading, no error codes found

Module: Side Obstacle Detection Control Module - Left
===END SODL DTC===

===RTM DTC ===
Successful DTC reading, no error codes found

Module: Radio Transceiver Module
===END RTM DTC===

===HVAC DTC U0140:00-0A===
Code: U0140 - Lost Communication With Body Control Module

Status:
 - DTC Present at Time of Request
 - Malfunction Indicator Lamp is Off for this DTC

Module: Heating Ventilation Air Conditioning
===END HVAC DTC===

===RFA DTC ===
Successful DTC reading, no error codes found

Module: Remote Function Actuator
===END RFA DTC===

===HSWM DTC ===
Successful DTC reading, no error codes found

Module: Heated Steering Wheel Module
===END HSWM DTC===

===GPSM DTC ===
Successful DTC reading, no error codes found

Module: Global Positioning System Module
===END GPSM DTC===

===DCSM DTC ===
Successful DTC reading, no error codes found

Module: Driver/Dual Climate-Control Seat Module
===END DCSM DTC===

===LTM DTC ===
Successful DTC reading, no error codes found

Module: Liftgate/Trunk Module
===END LTM DTC===

===DSM DTC ===
Successful DTC reading, no error codes found

Module: Driver's Seat Module
===END DSM DTC===

(WARN) [17:39:49.706] Checking Bluetooth…
(WARN) [17:39:49.722] Checking BLE…
(WARN) [17:39:50.421] Checking vLinker FD BLE…
(OK) [17:39:51.459] Adapter: vLinker FD v2.2.92 VTVERSMIC3312 V2.0.92 (ELM327 v2.2)
(OK) [17:39:51.918] Connection to vehicle has been established
(OK) [17:39:53.530] Ford Explorer TiVCT 3.5L 2015 ( 2015 MY ), VIN: 1FM*********29203
(OK) [17:39:54.021] OBD2_PCM - On Board Diagnostic II (PCM)
(OK) [17:39:54.602] PCM - Powertrain Control Module
(OK) [17:39:54.807] APIM - Accessory Protocol Interface Module
(WARN) [17:39:55.300] DTCs in APIM: C1001:01-48, U3003:16-08
(OK) [17:39:55.303] FCIM - Front Controls Interface Module
(OK) [17:39:55.467] FLM - Front Lighting Control Module
(OK) [17:39:55.615] ATCM - All Terrain Control Module
(OK) [17:39:55.752] DSP - (Audio) Digital Signal Processing Module
(OK) [17:39:55.938] OCS - Occupant Classification System Module
(OK) [17:39:56.094] ABS - Antilock braking system
(OK) [17:39:56.320] RCM - Restraint Control Module
(OK) [17:39:56.469] PAM - Parking Aid Module
(OK) [17:39:56.607] PSCM - Power Steering Control Module
(OK) [17:39:56.771] ACM - Audio Control Module
(OK) [17:39:56.919] BdyCM - Body Control Module
(OK) [17:39:57.069] SCCM - Steering Column Control Module
(OK) [17:39:57.340] IPC - Instrument Panel Control Module
(WARN) [17:39:57.685] DTCs in IPC: U0253:00-2F
(OK) [17:39:57.687] IPMA - Image Processing Module A
(OK) [17:39:57.850] SODR - Side Obstacle Detection Control Module - Right
(OK) [17:39:58.103] SODL - Side Obstacle Detection Control Module - Left
(OK) [17:39:58.254] RTM - Radio Transceiver Module
(OK) [17:39:58.420] HVAC - Heating Ventilation Air Conditioning
(WARN) [17:39:58.794] DTCs in HVAC: U0140:00-0A
(OK) [17:39:58.795] RFA - Remote Function Actuator
(OK) [17:39:58.960] HSWM - Heated Steering Wheel Module
(OK) [17:39:59.096] GPSM - Global Positioning System Module
(OK) [17:39:59.276] DCSM - Driver/Dual Climate-Control Seat Module
(OK) [17:39:59.395] LTM - Liftgate/Trunk Module
(OK) [17:39:59.534] DSM - Driver’s Seat Module

19

image1920Ă—1440 541 KB

1 Like
20

You need to change this to a “1”. You have your vehicle set to a CGEA 1.3 network which a 2015 did not have. It has a CGEA 1.2 network hence the need for the change.

DE00/7D0-01-02: xxxx-xxxx-1xxx

Sync 3 APIM Database - CyanLabs
