2018 Navigator Black screened updating 3.0.22326 to 3.4.23188

Ford SYNC 3 Support CyanLabs Update Support
, , , , ,
1

Shortly after connecting the install USB, there was a message saying something like “Update complete, remove USB, update will continue…”. The message went away and the screen went black. I removed the USB and screen has not come back on since. I can access the APIM thru FORScan and can read AB and configurations. I can reboot the module but it does fail selftest almost immediately.

SYNC Region: NA

Navigation Variant: Nav

Manufacturer Year: Unknown

Install Type: OEM

Old SYNC Version: 3.0.22326

New SYNC Version: 3.4.23188

Do you have a error message, if so what is it?
black screen so if there are error messages, I cannot see them.

Update Method: CyanLabs Syn3 Updater

Syn3 Updater Version: V2.14.2.0

Syn3 Updater Documentation Read: yes

Syn3 Updater Log File

CYANLABS - SYN3 UPDATER - V2.14.2.0
Branch: Stable
Operating System: Microsoft Windows 11 Pro (2009)

PREVIOUS CONFIGURATION
Version: 3.0.22326
Region: NA
Navigation: True
Install Mode: Auto-Detect (reformat)
Install Mode Overridden: False
My20 Protection Enabled: Auto-Detect

DESTINATION DETAILS
Mode: Drive
Model: JetFlash Transcend 32GB USB Device
Size: 29.1GB
FileSystem: exFAT
Partition Type: MBR

REFORMAT.LST
VOICE=5U5T-14G391-CS_1660783942000.TAR.GZ
GRACENOTES=4U5T-14G423-CC_1615429225000.TAR.GZ
APPS=NU5T-14G381-AD_1689364279000.TAR.GZ
MAP=4U5T-14G421-CJD_1615428865000.TAR.GZ
MAP=4U5T-14G421-CHD_1615428793000.TAR.GZ
MAP=4U5T-14G421-CGD_1615428721000.TAR.GZ
MAP=4U5T-14G421-CFD_1615428639000.TAR.GZ
MAP=4U5T-14G421-CED_1615428554000.TAR.GZ
MAP=4U5T-14G421-CDD_1615428467000.TAR.GZ
MAP=4U5T-14G421-CCD_1615428361000.TAR.GZ
MAP=4U5T-14G421-CBD_1615428261000.TAR.GZ
MAP=4U5T-14G421-CAD_1615428059000.TAR.GZ
MAP_LICENSE=4U5T-14G424-CD_1616778089000.TAR.GZ
VOICE_NAV=4U5T-14G422-CAJ_1626961442000.TAR.GZ
VOICE_NAV=4U5T-14G422-CBJ_1626962550000.TAR.GZ
VOICE_NAV=4U5T-14G422-CCJ_1626963400000.TAR.GZ


AUTOINSTALL.LST
; CyanLabs Syn3Updater 2.14.2.0 Stable - reformat  Mode - Sync 3.4.23188 NA

[SYNCGen3.0_ALL_PRODUCT]
Item1 = RWDataCleaner TOOL - PU5T-14G386-BB_1690840002000.TAR.GZ
Open1 = SyncMyRide\PU5T-14G386-BB_1690840002000.TAR.GZ
Item2 = REFORMAT TOOL  - 1u5t-14g386-cb.tar.gz
Open2 = SyncMyRide\1u5t-14g386-cb.tar.gz
Options = AutoInstall

FILES (18)
1u5t-14g386-cb.tar.gz (8.5MB)
PU5T-14G386-BB_1690840002000.TAR.GZ (3.2KB)
5U5T-14G391-CS_1660783942000.TAR.GZ (385.5MB)
4U5T-14G423-CC_1615429225000.TAR.GZ (564.2MB)
NU5T-14G381-AD_1689364279000.TAR.GZ (869.8MB)
4U5T-14G421-CJD_1615428865000.TAR.GZ (657.9MB)
4U5T-14G421-CHD_1615428793000.TAR.GZ (989.6MB)
4U5T-14G421-CGD_1615428721000.TAR.GZ (1.1GB)
4U5T-14G421-CFD_1615428639000.TAR.GZ (1GB)
4U5T-14G421-CED_1615428554000.TAR.GZ (1GB)
4U5T-14G421-CDD_1615428467000.TAR.GZ (1.2GB)
4U5T-14G421-CCD_1615428361000.TAR.GZ (1GB)
4U5T-14G421-CBD_1615428261000.TAR.GZ (1.1GB)
4U5T-14G421-CAD_1615428059000.TAR.GZ (1.1GB)
4U5T-14G424-CD_1616778089000.TAR.GZ (1.7KB)
4U5T-14G422-CAJ_1626961442000.TAR.GZ (1.3GB)
4U5T-14G422-CBJ_1626962550000.TAR.GZ (772.4MB)
4U5T-14G422-CCJ_1626963400000.TAR.GZ (549.6MB)

LOG
[9/13/2025 9:07:00 PM] Selected Region: NA - Release: Sync 3.4.23188 - Map Version: 2.20 (2020) - NA
[9/13/2025 9:07:00 PM] Install Mode: Auto-Detect (reformat) Forced: False
[9/13/2025 9:07:00 PM] MY20 Protection: Auto-Detect
[9/13/2025 9:07:00 PM] Formatting USB drive
[9/13/2025 9:07:00 PM] Re-creating partition table as MBR and formatting as ExFat on selected USB drive
[9/13/2025 9:07:10 PM] Checking Existing File: 1u5t-14g386-cb.tar.gz
[9/13/2025 9:07:10 PM] Validated: 1u5t-14g386-cb.tar.gz (Skipping Download)
[9/13/2025 9:07:10 PM] Checking Existing File: PU5T-14G386-BB_1690840002000.TAR.GZ
[9/13/2025 9:07:10 PM] Validated: PU5T-14G386-BB_1690840002000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:10 PM] Checking Existing File: 5U5T-14G391-CS_1660783942000.TAR.GZ
[9/13/2025 9:07:11 PM] Validated: 5U5T-14G391-CS_1660783942000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:11 PM] Checking Existing File: 4U5T-14G423-CC_1615429225000.TAR.GZ
[9/13/2025 9:07:13 PM] Validated: 4U5T-14G423-CC_1615429225000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:13 PM] Checking Existing File: NU5T-14G381-AD_1689364279000.TAR.GZ
[9/13/2025 9:07:15 PM] Validated: NU5T-14G381-AD_1689364279000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:15 PM] Checking Existing File: 4U5T-14G421-CJD_1615428865000.TAR.GZ
[9/13/2025 9:07:16 PM] Validated: 4U5T-14G421-CJD_1615428865000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:16 PM] Checking Existing File: 4U5T-14G421-CHD_1615428793000.TAR.GZ
[9/13/2025 9:07:18 PM] Validated: 4U5T-14G421-CHD_1615428793000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:18 PM] Checking Existing File: 4U5T-14G421-CGD_1615428721000.TAR.GZ
[9/13/2025 9:07:21 PM] Validated: 4U5T-14G421-CGD_1615428721000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:21 PM] Checking Existing File: 4U5T-14G421-CFD_1615428639000.TAR.GZ
[9/13/2025 9:07:23 PM] Validated: 4U5T-14G421-CFD_1615428639000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:23 PM] Checking Existing File: 4U5T-14G421-CED_1615428554000.TAR.GZ
[9/13/2025 9:07:26 PM] Validated: 4U5T-14G421-CED_1615428554000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:26 PM] Checking Existing File: 4U5T-14G421-CDD_1615428467000.TAR.GZ
[9/13/2025 9:07:28 PM] Validated: 4U5T-14G421-CDD_1615428467000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:28 PM] Checking Existing File: 4U5T-14G421-CCD_1615428361000.TAR.GZ
[9/13/2025 9:07:31 PM] Validated: 4U5T-14G421-CCD_1615428361000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:31 PM] Checking Existing File: 4U5T-14G421-CBD_1615428261000.TAR.GZ
[9/13/2025 9:07:34 PM] Validated: 4U5T-14G421-CBD_1615428261000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:34 PM] Checking Existing File: 4U5T-14G421-CAD_1615428059000.TAR.GZ
[9/13/2025 9:07:37 PM] Validated: 4U5T-14G421-CAD_1615428059000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:37 PM] Checking Existing File: 4U5T-14G424-CD_1616778089000.TAR.GZ
[9/13/2025 9:07:37 PM] Validated: 4U5T-14G424-CD_1616778089000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:37 PM] Checking Existing File: 4U5T-14G422-CAJ_1626961442000.TAR.GZ
[9/13/2025 9:07:41 PM] Validated: 4U5T-14G422-CAJ_1626961442000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:41 PM] Checking Existing File: 4U5T-14G422-CBJ_1626962550000.TAR.GZ
[9/13/2025 9:07:43 PM] Validated: 4U5T-14G422-CBJ_1626962550000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:43 PM] Checking Existing File: 4U5T-14G422-CCJ_1626963400000.TAR.GZ
[9/13/2025 9:07:44 PM] Validated: 4U5T-14G422-CCJ_1626963400000.TAR.GZ (Skipping Download)
[9/13/2025 9:07:44 PM] Preparing USB drive
[9/13/2025 9:07:44 PM] Checking Existing File: 1u5t-14g386-cb.tar.gz
[9/13/2025 9:07:44 PM] Copying: 1u5t-14g386-cb.tar.gz
[9/13/2025 9:07:45 PM] Validating: 1u5t-14g386-cb.tar.gz
[9/13/2025 9:07:45 PM] Copied: 1u5t-14g386-cb.tar.gz
[9/13/2025 9:07:45 PM] Checking Existing File: PU5T-14G386-BB_1690840002000.TAR.GZ
[9/13/2025 9:07:45 PM] Copying: PU5T-14G386-BB_1690840002000.TAR.GZ
[9/13/2025 9:07:46 PM] Validating: PU5T-14G386-BB_1690840002000.TAR.GZ
[9/13/2025 9:07:46 PM] Copied: PU5T-14G386-BB_1690840002000.TAR.GZ
[9/13/2025 9:07:46 PM] Checking Existing File: 5U5T-14G391-CS_1660783942000.TAR.GZ
[9/13/2025 9:07:46 PM] Copying: 5U5T-14G391-CS_1660783942000.TAR.GZ
[9/13/2025 9:08:37 PM] Validating: 5U5T-14G391-CS_1660783942000.TAR.GZ
[9/13/2025 9:08:47 PM] Copied: 5U5T-14G391-CS_1660783942000.TAR.GZ
[9/13/2025 9:08:47 PM] Checking Existing File: 4U5T-14G423-CC_1615429225000.TAR.GZ
[9/13/2025 9:08:47 PM] Copying: 4U5T-14G423-CC_1615429225000.TAR.GZ
[9/13/2025 9:09:56 PM] Validating: 4U5T-14G423-CC_1615429225000.TAR.GZ
[9/13/2025 9:10:18 PM] Copied: 4U5T-14G423-CC_1615429225000.TAR.GZ
[9/13/2025 9:10:18 PM] Checking Existing File: NU5T-14G381-AD_1689364279000.TAR.GZ
[9/13/2025 9:10:18 PM] Copying: NU5T-14G381-AD_1689364279000.TAR.GZ
[9/13/2025 9:12:07 PM] Validating: NU5T-14G381-AD_1689364279000.TAR.GZ
[9/13/2025 9:12:42 PM] Copied: NU5T-14G381-AD_1689364279000.TAR.GZ
[9/13/2025 9:12:42 PM] Checking Existing File: 4U5T-14G421-CJD_1615428865000.TAR.GZ
[9/13/2025 9:12:42 PM] Copying: 4U5T-14G421-CJD_1615428865000.TAR.GZ
[9/13/2025 9:14:04 PM] Validating: 4U5T-14G421-CJD_1615428865000.TAR.GZ
[9/13/2025 9:14:30 PM] Copied: 4U5T-14G421-CJD_1615428865000.TAR.GZ
[9/13/2025 9:14:30 PM] Checking Existing File: 4U5T-14G421-CHD_1615428793000.TAR.GZ
[9/13/2025 9:14:30 PM] Copying: 4U5T-14G421-CHD_1615428793000.TAR.GZ
[9/13/2025 9:16:34 PM] Validating: 4U5T-14G421-CHD_1615428793000.TAR.GZ
[9/13/2025 9:17:13 PM] Copied: 4U5T-14G421-CHD_1615428793000.TAR.GZ
[9/13/2025 9:17:13 PM] Checking Existing File: 4U5T-14G421-CGD_1615428721000.TAR.GZ
[9/13/2025 9:17:13 PM] Copying: 4U5T-14G421-CGD_1615428721000.TAR.GZ
[9/13/2025 9:19:32 PM] Validating: 4U5T-14G421-CGD_1615428721000.TAR.GZ
[9/13/2025 9:20:16 PM] Copied: 4U5T-14G421-CGD_1615428721000.TAR.GZ
[9/13/2025 9:20:16 PM] Checking Existing File: 4U5T-14G421-CFD_1615428639000.TAR.GZ
[9/13/2025 9:20:16 PM] Copying: 4U5T-14G421-CFD_1615428639000.TAR.GZ
[9/13/2025 9:22:30 PM] Validating: 4U5T-14G421-CFD_1615428639000.TAR.GZ
[9/13/2025 9:23:12 PM] Copied: 4U5T-14G421-CFD_1615428639000.TAR.GZ
[9/13/2025 9:23:12 PM] Checking Existing File: 4U5T-14G421-CED_1615428554000.TAR.GZ
[9/13/2025 9:23:12 PM] Copying: 4U5T-14G421-CED_1615428554000.TAR.GZ
[9/13/2025 9:25:25 PM] Validating: 4U5T-14G421-CED_1615428554000.TAR.GZ
[9/13/2025 9:26:07 PM] Copied: 4U5T-14G421-CED_1615428554000.TAR.GZ
[9/13/2025 9:26:07 PM] Checking Existing File: 4U5T-14G421-CDD_1615428467000.TAR.GZ
[9/13/2025 9:26:07 PM] Copying: 4U5T-14G421-CDD_1615428467000.TAR.GZ
[9/13/2025 9:28:47 PM] Validating: 4U5T-14G421-CDD_1615428467000.TAR.GZ
[9/13/2025 9:29:38 PM] Copied: 4U5T-14G421-CDD_1615428467000.TAR.GZ
[9/13/2025 9:29:38 PM] Checking Existing File: 4U5T-14G421-CCD_1615428361000.TAR.GZ
[9/13/2025 9:29:38 PM] Copying: 4U5T-14G421-CCD_1615428361000.TAR.GZ
[9/13/2025 9:31:51 PM] Validating: 4U5T-14G421-CCD_1615428361000.TAR.GZ
[9/13/2025 9:32:33 PM] Copied: 4U5T-14G421-CCD_1615428361000.TAR.GZ
[9/13/2025 9:32:33 PM] Checking Existing File: 4U5T-14G421-CBD_1615428261000.TAR.GZ
[9/13/2025 9:32:33 PM] Copying: 4U5T-14G421-CBD_1615428261000.TAR.GZ
[9/13/2025 9:34:55 PM] Validating: 4U5T-14G421-CBD_1615428261000.TAR.GZ
[9/13/2025 9:35:40 PM] Copied: 4U5T-14G421-CBD_1615428261000.TAR.GZ
[9/13/2025 9:35:40 PM] Checking Existing File: 4U5T-14G421-CAD_1615428059000.TAR.GZ
[9/13/2025 9:35:40 PM] Copying: 4U5T-14G421-CAD_1615428059000.TAR.GZ
[9/13/2025 9:37:55 PM] Validating: 4U5T-14G421-CAD_1615428059000.TAR.GZ
[9/13/2025 9:38:38 PM] Copied: 4U5T-14G421-CAD_1615428059000.TAR.GZ
[9/13/2025 9:38:38 PM] Checking Existing File: 4U5T-14G424-CD_1616778089000.TAR.GZ
[9/13/2025 9:38:38 PM] Copying: 4U5T-14G424-CD_1616778089000.TAR.GZ
[9/13/2025 9:38:39 PM] Validating: 4U5T-14G424-CD_1616778089000.TAR.GZ
[9/13/2025 9:38:39 PM] Copied: 4U5T-14G424-CD_1616778089000.TAR.GZ
[9/13/2025 9:38:39 PM] Checking Existing File: 4U5T-14G422-CAJ_1626961442000.TAR.GZ
[9/13/2025 9:38:39 PM] Copying: 4U5T-14G422-CAJ_1626961442000.TAR.GZ
[9/13/2025 9:41:23 PM] Validating: 4U5T-14G422-CAJ_1626961442000.TAR.GZ
[9/13/2025 9:42:15 PM] Copied: 4U5T-14G422-CAJ_1626961442000.TAR.GZ
[9/13/2025 9:42:15 PM] Checking Existing File: 4U5T-14G422-CBJ_1626962550000.TAR.GZ
[9/13/2025 9:42:15 PM] Copying: 4U5T-14G422-CBJ_1626962550000.TAR.GZ
[9/13/2025 9:43:52 PM] Validating: 4U5T-14G422-CBJ_1626962550000.TAR.GZ
[9/13/2025 9:44:22 PM] Copied: 4U5T-14G422-CBJ_1626962550000.TAR.GZ
[9/13/2025 9:44:22 PM] Checking Existing File: 4U5T-14G422-CCJ_1626963400000.TAR.GZ
[9/13/2025 9:44:22 PM] Copying: 4U5T-14G422-CCJ_1626963400000.TAR.GZ
[9/13/2025 9:45:31 PM] Validating: 4U5T-14G422-CCJ_1626963400000.TAR.GZ
[9/13/2025 9:45:52 PM] Copied: 4U5T-14G422-CCJ_1626963400000.TAR.GZ
[9/13/2025 9:45:52 PM] Generating reformat.lst
[9/13/2025 9:45:53 PM] Generating autoinstall.lst
[9/13/2025 9:45:53 PM] ALL FILES DOWNLOADED AND COPIED TO THE USB DRIVE SUCCESSFULLY!
2

Try a better USB drive.

3

Will do but I’m not seeing activity on the flash drive when it’s connected to the Navigator. I have a new 256 GB SanDisk USG 3.0 I will use and see if that helps. I’ll follow up and let you know. Thank you!!

4

Run the update again with the new USB. If it does not work, does the screen stay black or does it show the Mustang, horse and Ford logos?

DO NOT remove the USB until you see a solid green screen when reformatting the APIM.

Did you check the APIM to see if it is MY20+ or not using the Interrogator Utility before you reformatted it?

5

I did not run the interrogator utility on the first pass but did select it on when creating the install on the new usb. However, it did not appear to run when I plugged it in to the Navigator a few moments ago. I left it connected for for a couple on minutes but did not see any activity on the USB drive. Likewise, I deslected the interrogator and restart the build on the new usb. I have a hunch I bricked. it and will need to replace the APIM.

6

The new USB did not help. The problem seems to be with the APIM as I’m not seeing any activity on the usb.

Any suggestions on waking up the APIM or will it need to be replaced?

7

Share the APIM model with us then.

I guess you didn’t you check it before attempting the update…

8

This is what is reported in FORScan.

APIM - Accessory Protocol Interface Module
Bus: HSCAN
Part number: JL7T-14G371-KGB
Calibration level: JL7T-14G371-KGB
Strategy : HB5T-14G374-CA
Calibration: HB5T-14G375-CA
VIN: 5LMJJ2LT4JEL05257

I may have misunderstood, but I had assumed autodetect would check for MY20 and abort if not compatible.

9

You didn’t misunderstood, it should as long as you ran the interrogator log and have it processed by Syn3updater in order to determine so…

Now, we have a problem with that P/N: Would you be able to get physical access to the unit?, it would be important to get the information on its back.

APIM model JL7T-14G371-KGB is not listed in our HW DB, but based on the naming convention, it’s very likely to be MY20.

image1490×545 38 KB

But to confirm this, we would need to get a picture from its back.

12

It is MY20+. The unit is likely bricked.

13

I should be able to pull it and get some pics in an hour or so. I have not actually pulled the APIM before but from what I’ve seen in the workshop manual, I need to remove some trim pieces, the ACM and then should be able to pull the APIM module.

14

Actually, there’s no need…
I was doing some research and I’ve found a single thread from 2 years ago in which your APIM model is named → 2019 Navigator Sync 3 update BLACK SCREEN! .

Based on the naming convention, I was about to add a mask so that Syn3updater would detect it as MY20, but I got an error… Guess which error: the value was not unique…

So the mask I was about to add to prevent this was already in place, and Syn3updater detects that very same model as MY20 because of such mask:

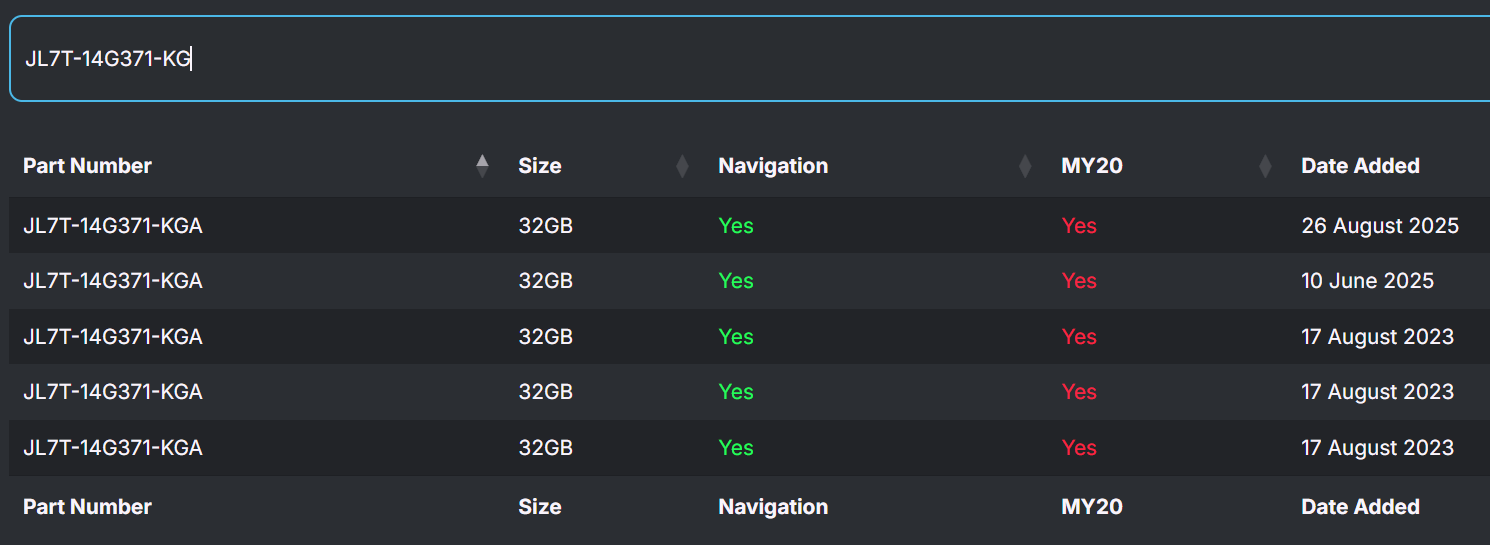

image930×457 72.6 KB

So it seems that somehow you bypassed the MY20 detection…

Since you have reformatted a MY20 unit, your options are limited:

15

Appreciate the assist gents! Let me evaluate the options and get back to you.

16

You are welcome, and good luck with that.

Just a thought, since you are NA based: should you decide that someone else could recover it, consider contacting Naviupgrade → Bricked Sync 3 APIM Module Unbricking Service – NaviUpgrade . To be 100% transparent with you: as far as I know, he does what’s described in the GitHub page I’ve sent as 1st option. So you can do that as well, as long as you have the knowledge and access to the unit.

He’s also a forum member, although he’s not been that active lately, I’m sure you have seen some videos of him and Sync3 stuff.

17

I’ve decided to pull it and send it to NaviUpgrade. Would you like me to follow up after it’s unbricked and installed?

18

That’s up to you, I’ve extended the auto closure for the thread so you will have the option to…

For future reference: if you need to reformat the unit again in the future, you will need to jailbreak it and use FMODS’ universal reformat package, you can’t reformat it with Syn3updater.
