That should had been said on the first post, it’s not a minor detail.
I think it’s time for you to unmount the unit and take some sticker photos both on the screen and APIM.
Maybe the screen is MY20, i won’t be able to tell based on the PN, but maybe someone else will
Ow…sorry for that, didn’t know that it was important.
I will try to get it out of the car and make a photo of the stickers today.
Oh, no worries.
It’s important since without that information we would assume it’s stock. That’s why I asked if it’s been serviced in the past, since a hardware swap may have introduced MY20 components.
And if it’s a retrofit, well, who knows what’s in the car…
So the stickers may help.
Oke, I hope there are no more hidden secrets then…
I went straight to the car and pulled the APIM out.
On the screen I only saw a sticker with the following text.
LQ080Y5LX13
98005519
Made in China
Thank you for the information.
As I said before, I can’t comment on the screen’s information, but I was not expecting those numbers to be on a screen…

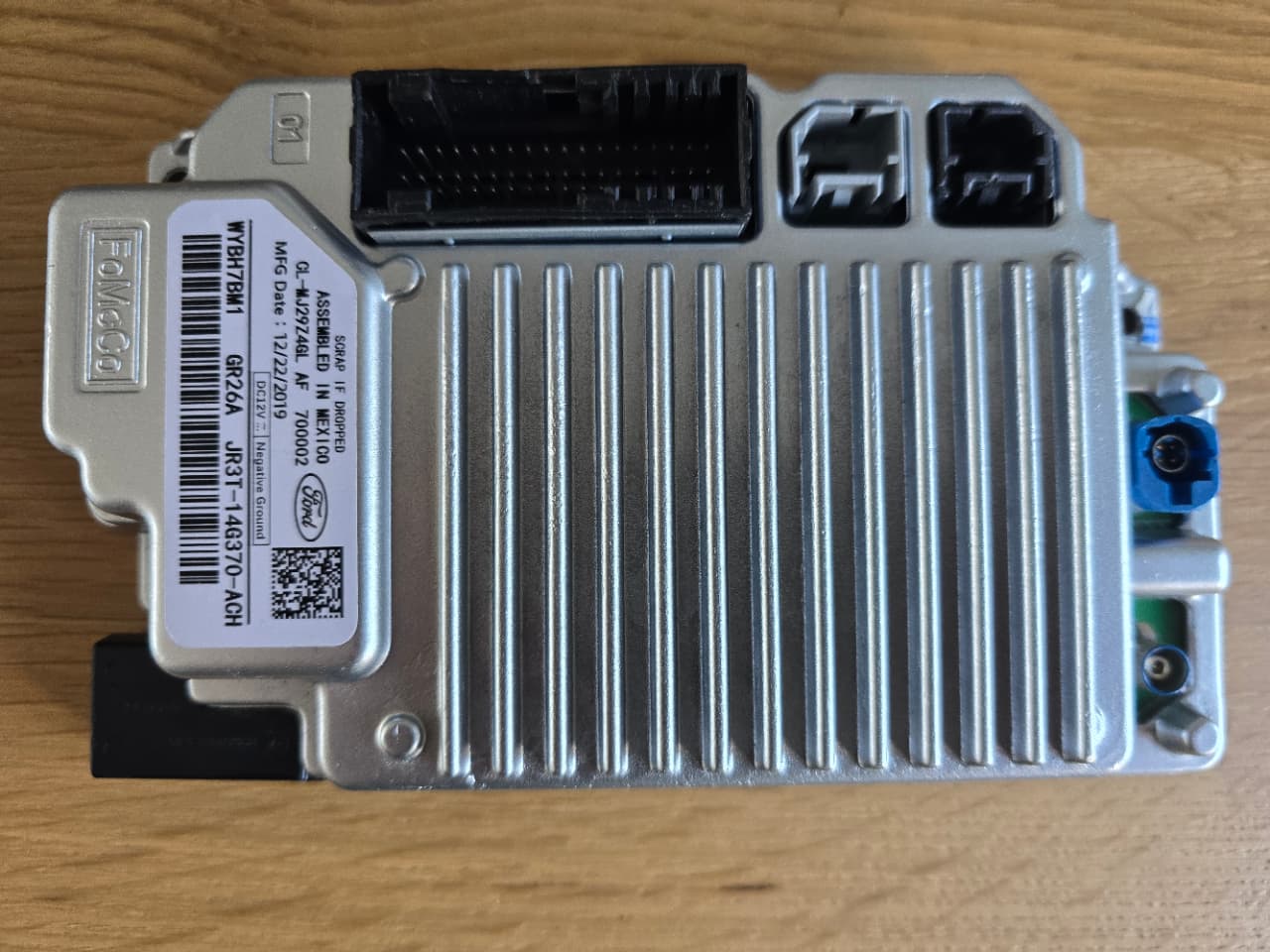

About the APIM, I may be getting out of touch, but that sticker looks really odd…
I’m from mobile at the moment so I cannot do some searches, but will do once I have the chance and update with my findings.
That’s a fraud APIM. I will not say how I know because that is what is helping them make this look less like a fraud. There are several items beyond the sticker that are out of place.
That’s generic LED screen folks are using for Sync installations. Looks the same as a Ford screen but these are not genuine Ford parts. It will work but…
As far as the APIM, definitely fishy. The build date shows 12/22/2019 for a J-series APIM, which indicates it is either MY20+ or counterfeit. Since you were able to reformat the unit and it didn’t brick, it’s the latter. And here is the proof: The actual part number of the original APIM unit is HB5T-14G371-BCA, although the sticker says it is JR3T-14G371-ACH. I would bet that if you searched the internet for the serial number of the unit listed on the sticker it would return several APIM’s for sale.
<d2p1:DID didFormat=“ASCII” didType=“On-line Diagnostic Database Reference Number” didValue=“F110” responseLength=“24”>
d2p1:ResponseDS-GB5T-14G371-CB</d2p1:Response>
<d2p1:DID didFormat=“ASCII” didType=“ECU Core Assembly Number” didValue=“F111” responseLength=“24”>
d2p1:ResponseHB5T-14G380-AA</d2p1:Response>
<d2p1:DID didFormat=“ASCII” didType=“ECU Delivery Assembly Number” didValue=“F113” responseLength=“24”>
d2p1:ResponseHB5T-14G371-BCA</d2p1:Response>
<d2p1:DID didFormat=“ASCII” didType=“ECU Calibration Data #1 Number” didValue=“F124” responseLength=“24”>
d2p1:ResponseGB5T-14G375-BA</d2p1:Response>
<d2p1:DID didFormat=“ASCII” didType=“Private Sub Node #1 Serial Number” didValue=“F141” responseLength=“16”>
d2p1:Response57563154303135580000000000000000</d2p1:Response>
<d2p1:DID didFormat=“ASCII” didType=“Vehicle Manufacturer ECU Software Number” didValue=“F188” responseLength=“24”>
d2p1:ResponseGB5T-14G374-CB</d2p1:Response>
Another give away is that this is a JR3T series APIM with 64GB of memory. Never produced by Ford for a Mustang…however, the APIM is NOT MY20+.
Storage is not an issue:
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“1.2G” available=“804K”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“2.9G” available=“15M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“2.4G” available=“14M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“1.5G” available=“7.6M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“2.3G” available=“17M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“3.8G” available=“21M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“40M” available=“308K”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“3.3G” available=“4.5M”/>
<d2p1:PartitionHealth type=“/fs/sd/MAP/” total=“3.2G” available=“26M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/” total=“4.6G” available=“27M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/” total=“4.8G” available=“29M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/” total=“4.3G” available=“25M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/” total=“3.6G” available=“35M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/” total=“245M” available=“1.0M”/>
<d2p1:PartitionHealth type=“/fs/Nuance/grace” total=“551M” available=“10M”/>
<d2p1:PartitionHealth type=“/fs/rwdata/” total=“1.2G” available=“922M”/>
<d2p1:PartitionHealth type=“/fs/rwdata/quip/” total=“35M” available=“35M”/>
<d2p1:PartitionHealth type=“/fs/rwdata/quip/” total=“90M” available=“90M”/>
<d2p1:PartitionHealth type=“/fs/mp/” total=“1.4G” available=“83M”/>
<d2p1:PartitionHealth type=“/fs/mp/resources” total=“72M” available=“332K”/>
<d2p1:PartitionHealth type=“/fs/images/” total=“54G” available=“13G”/>
This might just be the unit can’t boot because it needs the proper OEM screen attached, as it may not have the drivers for the aftermarket screen, since the unit is a remanufacture Gen 1 APIM indicated by the 2 USB ports, the metal FAKRA GPS port, and the firmware loaded.
3.0 APIM NON-NAV Unit Firmware (Production Release, 2016-Early 2017, G thru Early H Series)
Secondary Boot Loader: GB5T-14G376-AA
Strategy (F188): GB5T-14G374-AF (Use GB5T-14G374-CD to update.)
Calibration (F124): GB5T-14G375-BA or GB5T-14G375-BB
ECU Configuration/Sound Profiles (F10A): GB5T-14G379-AA
ECU Configuration/Illumination Strategy (F16B): GB5T-14G379-BA
If you bought this thru eBay, contact eBay and get your money back.
Wow, oke thanks for this very long and not so good conclusion for me.
If I understand it correctly, I can’t do anything with this?
I bought this system in the end of last year, so I don’t think any refund will happen.
When I was searching the internet I came across an ad from someone who sells a new APIM and screen (was 5 years old, but he never had the time to install it because personal things).
On the sticker at the back of the APIM is has a modelnr HM5T-14G370-GNG and on the other side of the APIM (side which is against the screen) a number: HS7T-14G371-FAE.
Can you please tell me if this is a ‘good’ modell or also a fake?
As I said before, thank you very much for your time and input. It just turns out I just don’t know enough about it myself
The data lines up ok and it is a 64GB NAV APIM. But without seeing an interrogator utility log I can’t guarantee what it is as far as a fake. It is most likely not.
J series APIM never came with double USB ports. Only the G & H series did.
He wrote he never used it, the tear off is on the screen.
So I think he doesn’t have a interrogator log.
Do you mean by ‘It is most likely not’ that it’s a fake or a ‘good’ one
If you think it’s probably a fake, can you give me a direction or link to a APIM that is good?
(region: EU with nav and where this all begon, with dutch language)
It’s probably a good one…
Hello, I’m back with a little (big) update…
I bought and installed the screen and APIM I found here in the Netherlands on the internet.
It seems everything is working, but I have a few things I hope someone can help me with.
One of the best parts is…it’s in Dutch language
Run the Interrogator Utility and post the xml here. The other 2 items will probably be answered with that info.
Did you save the asbuilt from the previous APIM?
I will make a log this afternoon.
I don’t have a save from my previous APIM, but was that necessary?
My previous APIM was not so good as I thought it would be.
Unless I missed something along the way, your issues were not related to asbuilt configuration.
If the unit was working fine before the upgrade attempt, I would think the asbuilt configuration was proper.
That configuration should be applied to your current working APIM, since the logo you mention is part of the asbuilt configuration.
Oke, but I didn’t save that asbuilt config unfortunately
Do you still have the old APIM?
You can install it and extract that.
Once you have that baseline, you save your new APIM asbuilt as backup and write the old’s one to the new one.
Someone is still waiting for your interrogator log, keep that in mind.
Sorry for my late reply, but I was searching a lot on the internet.
I have managed to get the Climate Control on my screen and the camera is also working.
I made a USB with the interrogator log files, but when I stick it in the car it’s keep saying system update in progress.
Nothing happens
