The sync3 mustang GPS works backwards...

[fredcop62]

Hello everyone,
I hadn’t used the GPS included in Sync3, and I just noticed that it’s working backwards. The map scrolls in the wrong direction. I haven’t found a setting, so I think it might be due to incorrect programming in the APIM. Any ideas?
Thanks.

---

SYNC Region: EU

Navigation Variant: Nav

Manufacturer Year: Pre MY20

Install Type: OEM Replacement

Old SYNC Version: 3.4.23188

New SYNC Version: 3.4.23188

Do you have a error message, if so what is it?
No

Update Method: CyanLabs Syn3 Updater

Syn3 Updater Version: 3.4.23188

Syn3 Updater Documentation Read: yes

Syn3 Updater Log File

CYANLABS - SYN3 UPDATER - V2.13.3.0
Branch: Stable
Operating System: Microsoft Windows 10 Professionnel (2009)

PREVIOUS CONFIGURATION
Version: 3.4.23188
Region: EU
Navigation: True
Install Mode: Auto-Detect (autoinstall)
Install Mode Overridden: False
My20 Protection Enabled: Auto-Detect

DESTINATION DETAILS
Mode: Drive
Model: Intenso Speed Line USB Device
Size: 58,6GB
FileSystem: FAT32
Partition Type: MBR

AUTOINSTALL.LST
; CyanLabs Syn3Updater 2.13.3.0 Stable - Autoinstall Mode - Sync 3.4.23188 EU

[SYNCGen3.0_ALL_PRODUCT]
Item1 = RWDataCleaner TOOL - PU5T-14G386-BB_1690840002000.TAR.GZ
Open1= SyncMyRide\PU5T-14G386-BB_1690840002000.TAR.GZ
Item2 = VOICE - 5U5T-14G391-AT_1660763323000.TAR.GZ
Open2 = SyncMyRide\5U5T-14G391-AT_1660763323000.TAR.GZ
Item3 = GRACENOTES - 4U5T-14G423-AC_1615425645000.TAR.GZ
Open3 = SyncMyRide\4U5T-14G423-AC_1615425645000.TAR.GZ
Item4 = ENH_DAB - 1U5T-14G658-AH_1644006443000.TAR.GZ
Open4 = SyncMyRide\1U5T-14G658-AH_1644006443000.TAR.GZ
Item5 = APPS - NU5T-14G381-AD_1689364279000.TAR.GZ
Open5 = SyncMyRide\NU5T-14G381-AD_1689364279000.TAR.GZ
Options = AutoInstall


FILES (5)
PU5T-14G386-BB_1690840002000.TAR.GZ (3,2KB)
5U5T-14G391-AT_1660763323000.TAR.GZ (1,5GB)
4U5T-14G423-AC_1615425645000.TAR.GZ (689MB)
1U5T-14G658-AH_1644006443000.TAR.GZ (57,5MB)
NU5T-14G381-AD_1689364279000.TAR.GZ (869,8MB)

LOG
[25/04/2025 09:59:28] Selected Region: EU - Release: Sync 3.4.23188 - Map Version: Conserver les cartes existantes
[25/04/2025 09:59:28] Install Mode: Auto-Detect (autoinstall) Forced: False
[25/04/2025 09:59:28] MY20 Protection: Auto-Detect
[25/04/2025 09:59:28] Formatting USB drive
[25/04/2025 09:59:28] Re-creating partition table as MBR and formatting as ExFat on selected USB drive
[25/04/2025 09:59:38] Checking Existing File: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 09:59:38] Downloading: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 09:59:38] Validating: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 09:59:38] Downloaded: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 09:59:38] Checking Existing File: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 09:59:38] Downloading: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:04:08] Validating: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:04:16] Downloaded: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:04:16] Checking Existing File: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:04:16] Downloading: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:06:38] Validating: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:06:42] Downloaded: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:06:42] Checking Existing File: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:06:42] Downloading: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:06:47] Validating: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:06:47] Downloaded: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:06:47] Checking Existing File: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:06:47] Downloading: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:08:15] Validating: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:08:19] Downloaded: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:08:19] Preparing USB drive
[25/04/2025 10:08:19] Checking Existing File: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 10:08:19] Copying: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 10:08:19] Validating: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 10:08:19] Copied: PU5T-14G386-BB_1690840002000.TAR.GZ
[25/04/2025 10:08:19] Checking Existing File: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:08:19] Copying: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:10:48] Validating: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:11:03] Copied: 5U5T-14G391-AT_1660763323000.TAR.GZ
[25/04/2025 10:11:03] Checking Existing File: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:11:03] Copying: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:12:02] Validating: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:12:09] Copied: 4U5T-14G423-AC_1615425645000.TAR.GZ
[25/04/2025 10:12:09] Checking Existing File: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:12:09] Copying: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:12:12] Validating: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:12:13] Copied: 1U5T-14G658-AH_1644006443000.TAR.GZ
[25/04/2025 10:12:13] Checking Existing File: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:12:13] Copying: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:13:24] Validating: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:13:33] Copied: NU5T-14G381-AD_1689364279000.TAR.GZ
[25/04/2025 10:13:33] Generating Autoinstall.lst
[25/04/2025 10:13:33] ALL FILES DOWNLOADED AND COPIED TO THE USB DRIVE SUCCESSFULLY!

[F150Chief]

Have you performed a Master Reset of the APIM?

[fredcop62]

Yes, I have already done a reset from sync3

[F150Chief]

Is this a Sync 3 upgrade? Did the vehicle have Sync 2 or other originally?

@fredcop62

The map scrolls in the wrong direction.

In both the x and y axis?
Is the map display set to North or direction of travel?

[fredcop62]

Yes, there was a sync2 before, and I couldn’t find the x-y setting

[F150Chief]

Check to see if the Sync 3 APIM is mounted upside down…Yes, really. There are x, y, and z axis gyros in the unit which are programmable but are initially programmed to mount a particular way attached to the Sync 3 screen assembly. Hopefully it is attached to the screen…

It is possible it is programmed wrong for the x, y, and z axis gyros.

[fredcop62]

No, I don’t think so. The rest is working normally; all the directions are in the right direction.

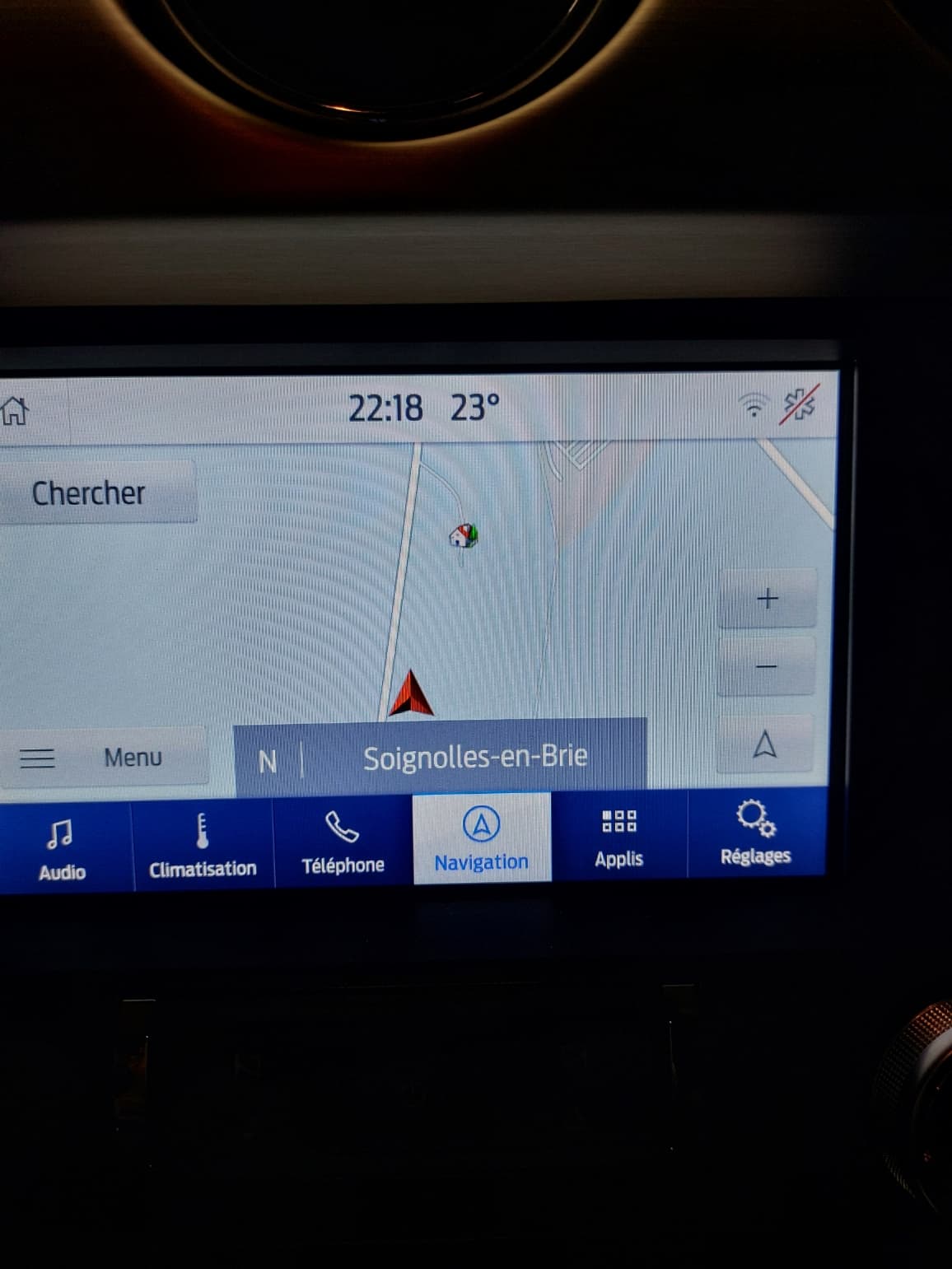

When the GPS is working, the map scrolls in the opposite direction to the vehicle. I made a video, but apparently I can’t post it.

[F150Chief]

That would be exactly the result. All functions would work normally but the screen would be wrong.

Can you post the APIM asbuilt? Do you have FORScan?

[fredcop62]

Yes, I have Forscan.

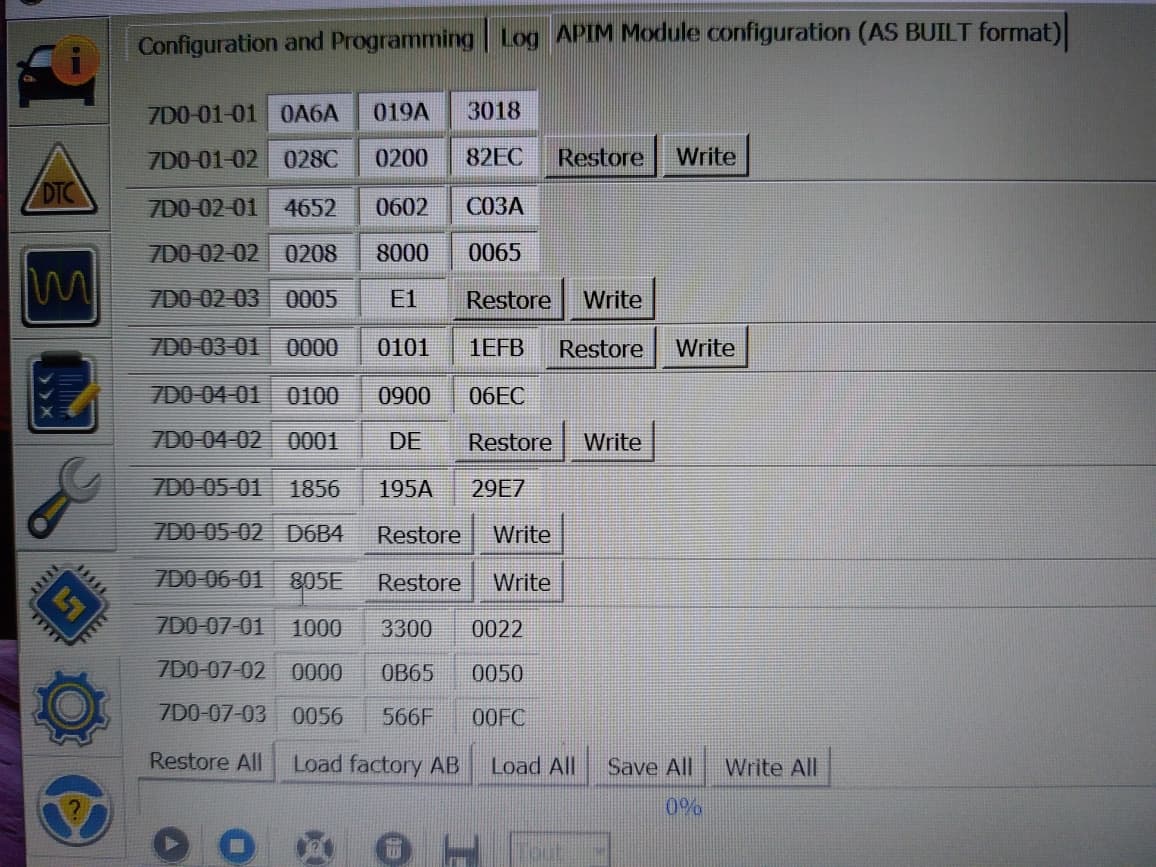

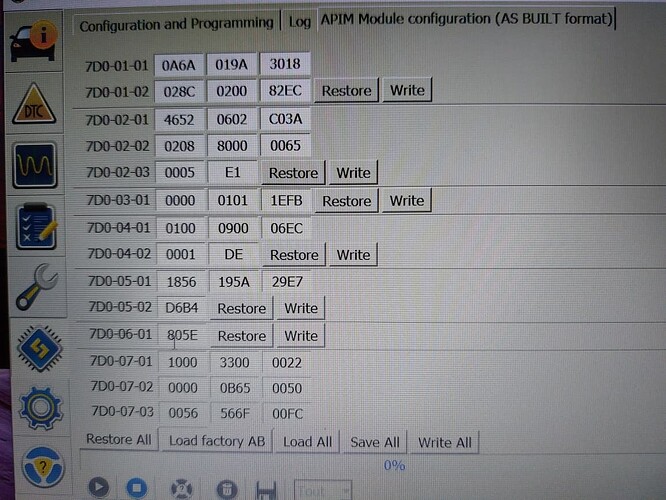

[fredcop62]

[F150Chief]

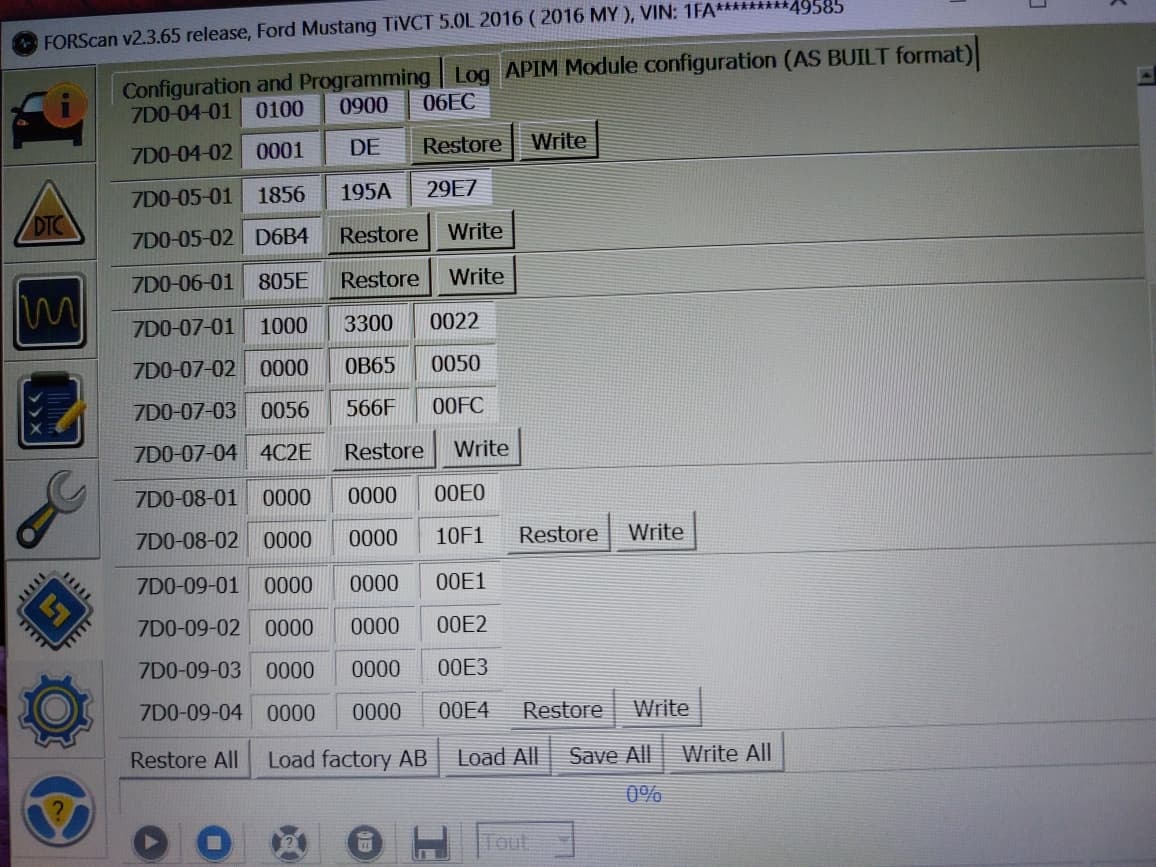

The programming for the APIM x, y, and z axis looks normal. The Y axis angle is 17.5 degrees, normal for a Mustang. The other axis values are ‘0’, which is expected.

7D0-07-02 xxxx xxxx xx
7D0-07-02 xx

Unless the unit is not mounted properly, there might be an issue with the APIM itself. Other than that there is nothing I can think of that would cause this.

[fredcop62]

Okay, thanks for taking the time to help me.
I noticed the symbol in the bottom right corner of the screen under the + -
I hadn’t seen it. There’s the single arrow, the north arrow, and the 3D arrow. Maybe that’s the problem…
Have a nice day.

[SFRANCO (Hades)]

[fredcop62]

Hello everyone,
Well, I checked the north or 3D arrow and it doesn’t change anything.

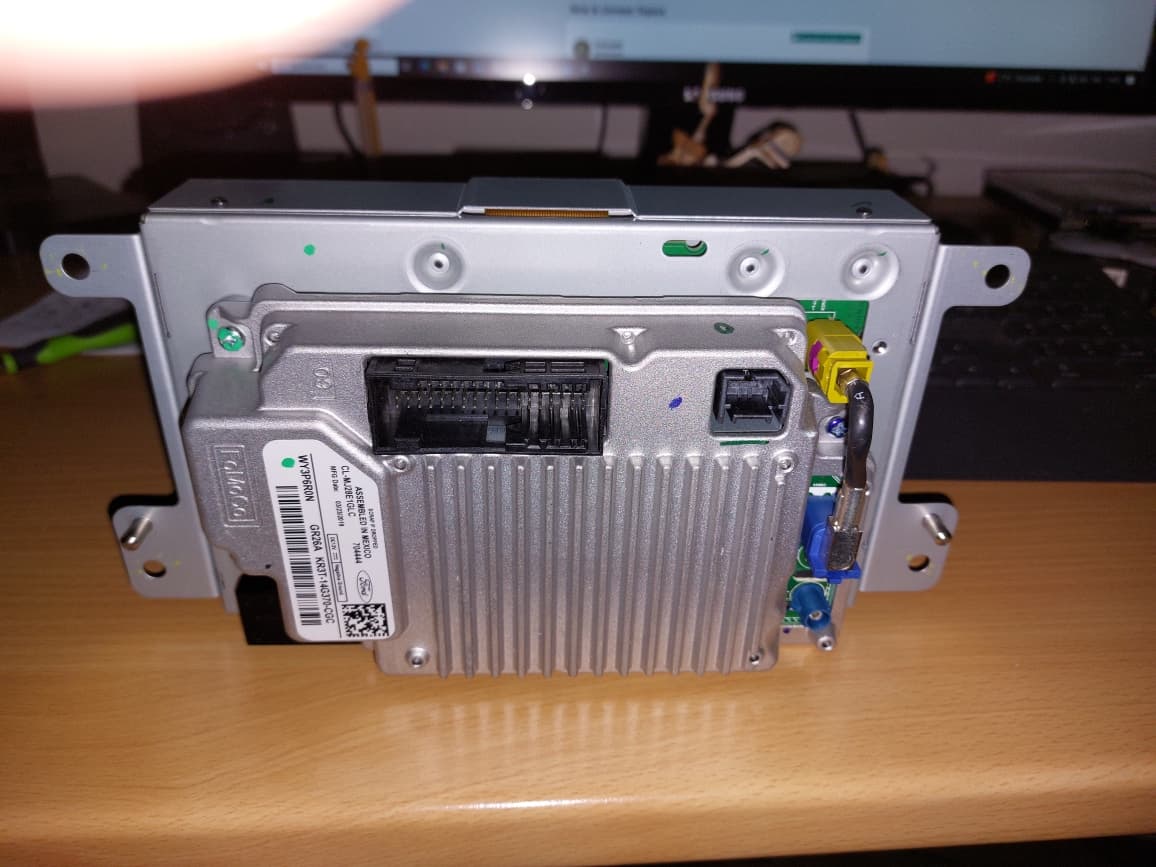

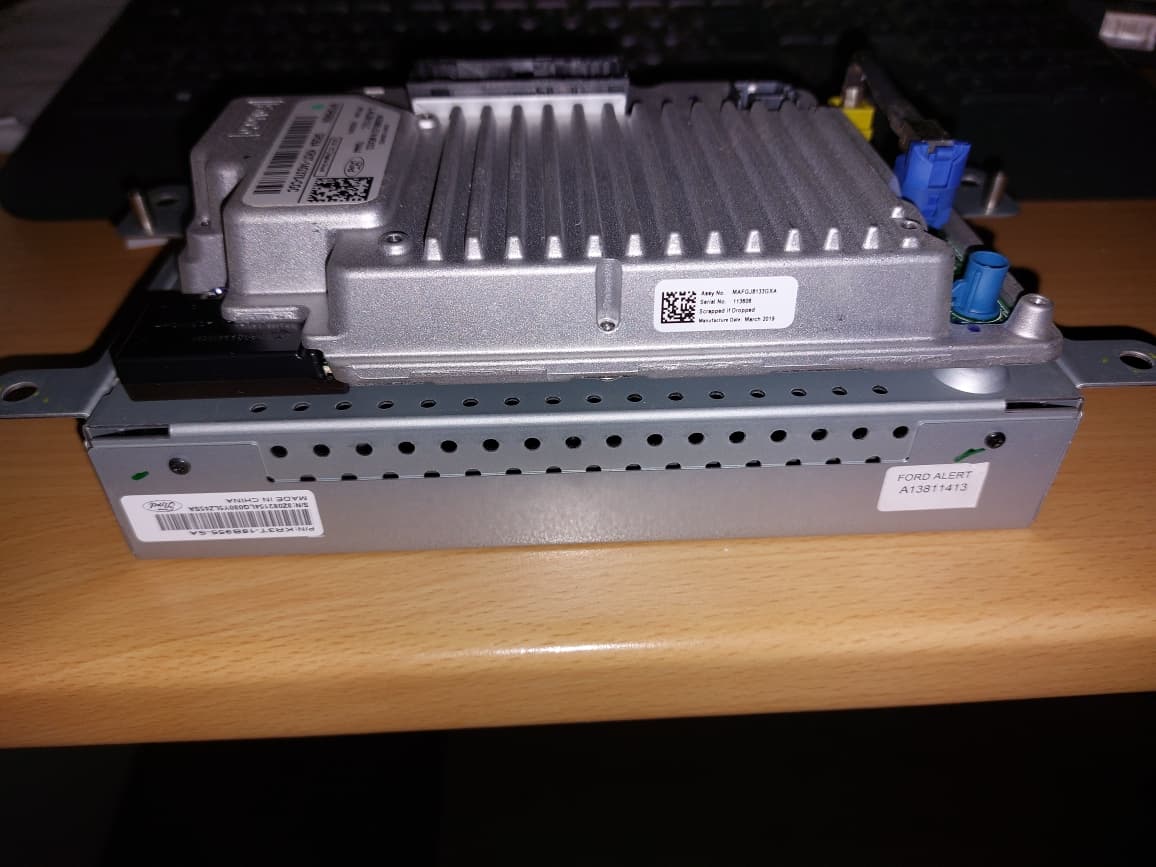

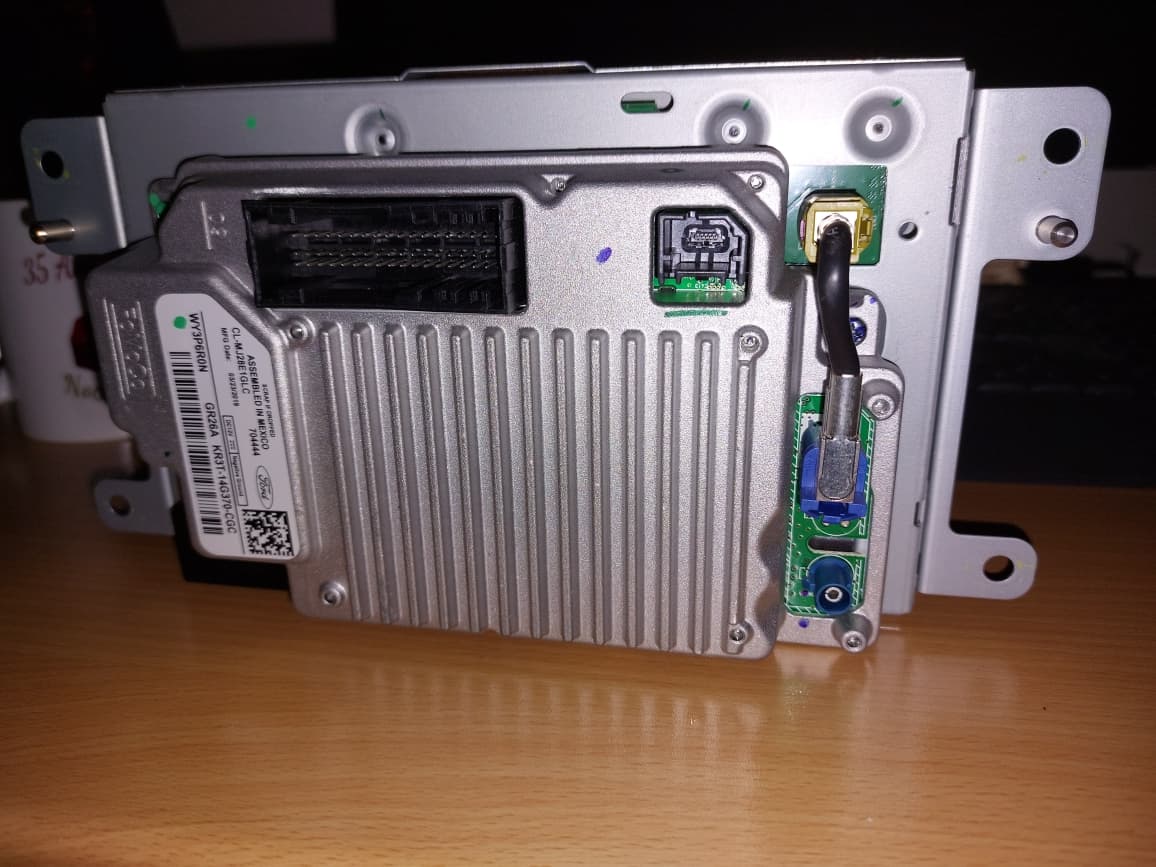

I disassembled the unit, can you tell me if it mounts correctly?
Thanks

[jmbach]

Swap the brackets. In my 2015 Mustang the APIM connector is on the bottom and the guide pins for the bracket are toward the top.

[fredcop62]

Ok thanks, I’ll try that

[fredcop62]

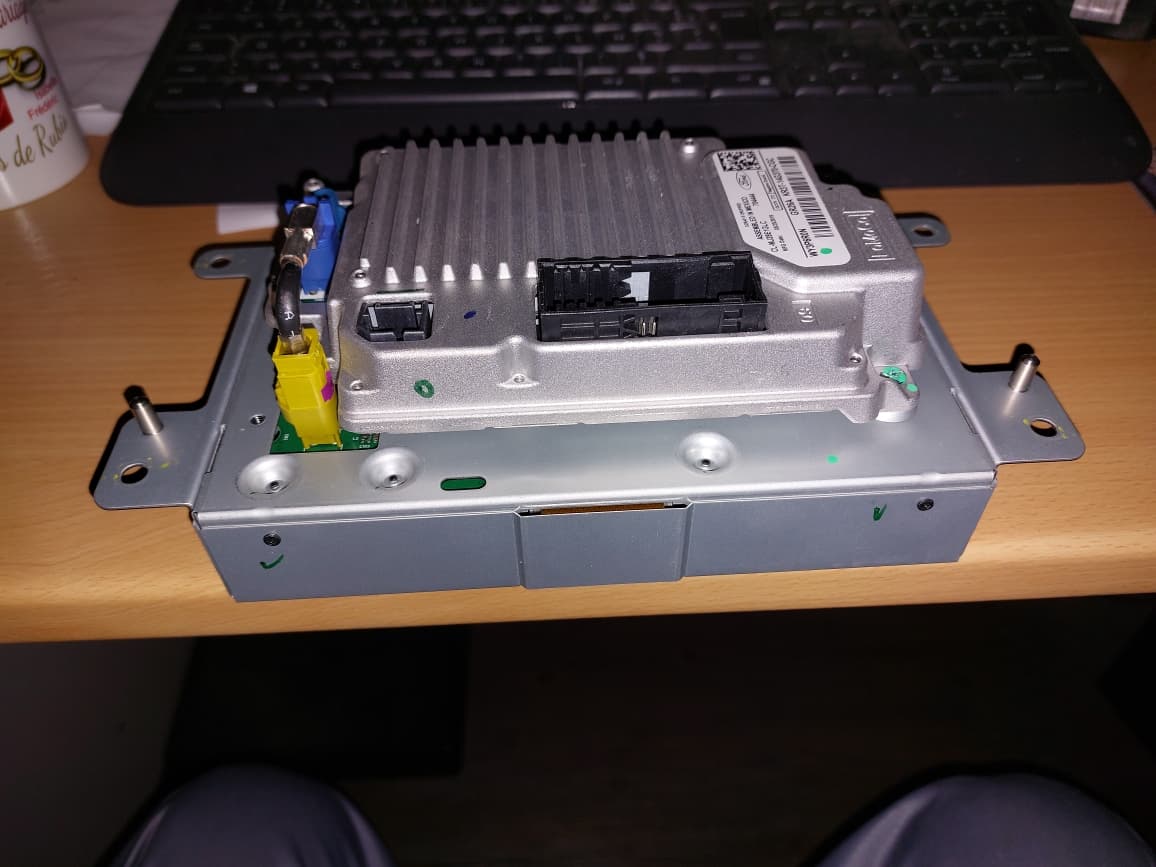

like that ?

[fredcop62]

Well, I tried, but it’s impossible to mount it any other way… I did a master reset and will try it again tomorrow, but I think there’s a problem with the APIM.
Have a nice day.

[jmbach]

Well, I went back to look at some pictures and I may have been wrong about the bracket orientation but however it is mounted, the APIM connector is on the bottom.

[bill32399]

Seems like an antenna issue or GPSM mounting issue. I would bet your using an after market antenna and not an OEM option? Where do you have said antenna mounted and did you disconnect the old GPSM module?
